Custom 15L Capacity Combined Mixer Granulator Electric Heating Cooling
| MOQ: | 1 set |
| Price: | $66900-$77200 |
| Standard Packaging: | Wooden cases |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
Detail Information
Place of Origin
Guangdong,China
Brand Name
CFine
Certification
CE,ISO 9001
Model Number
CF-15L
Capacity:
15L
Mixing Main Motor:
18.5KW
Pressure Cylinder:
￠160
Speed (Front/Back)::
0-40/31r/m
Type Of Heating:
Electrical Heating
Type Of Cooling:
Water-cooling
Extrusion Motor:
5.5kw
Rotor Type:
Double-leaf Type
Highlight:
15L Mixer Granulator
,Mixer Granulator Electric Heating Cooling
Product Description

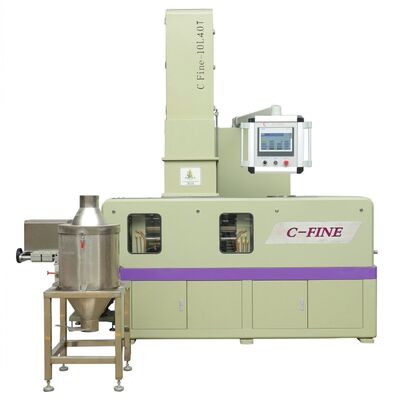

Custom 15L Capacity Combined Mixer Granulator with Electric Heating & Cooling
Custom 15L Low Price Consumption Combined Mixer-Granulator
Product Overview
Crafted entirely from wear-resistant alloy, this mixer's key contact components—including the chamber, hammer, side plate, and blade shaft—require no spraying or electroplating treatment. Engineered for precise stirring, dispersing, and blending of metal powders and binder formulations within defined temperature ranges, the system discharges material once it achieves a mud-like consistency. It then extrudes and granulates the batch, seamlessly preparing it for subsequent processing stages.
Technical Specifications
| Model | CF-1L35Z | CF-5L60Z | CF-10L75Z | CF-15L80Z |
|---|---|---|---|---|
| Capacity | 1L | 5L | 10L | 15L |
| Main Motor | 3.75kw | 7.5kw | 15kw | 18.5kw |
| Pressure Cylinder | ￠63 | ￠100 | ￠160 | ￠160 |
| RPM (front/rear) | 0-40/31 R/min | |||
| Type of Cooling | Electric Heating | |||
| Type of Heating | Ventilation cooling | Water-cooling | ||
| Gauge of the screw rod | 35mm | 60mm | 75mm | 80mm |
| Extrusion Motor | 2.2kw | 5.5kw | ||
| Grinding Motor | 0.75kw | |||
| Size | L1850*W1200*H2000mm | L2000*W1100*H2200mm | L2650*W1300*H2800mm | L2750*W1400*H2800mm |
| Weight | 1200Kg | 2200Kg | 2800Kg | 3000Kg |
| Power | 3∮ AC380V 50HZ | |||
Working Principle
Inside the mixing chamber, two rotors rotate at a specific speed ratio, drawing feed material into the nip where it undergoes squeezing and shearing forces. After passing through the gap, the material strikes the sharp "W" edge of the chamber and divides into two streams. These flow along the clearances between the chamber walls and rotors before returning to the rotor top. Within the sealed chamber, the mixture experiences strong shear and blending under controlled pressure and temperature, ensuring thorough dispersion and plasticization of the formulation for optimal performance.
Mixing System Design
The mixing chamber features a "W" shaped design with an "M" shaped lower pressure cover, creating a fully enclosed mixing space. The stirring blade employs a prismatic spiral design without dead angles, ensuring material shearing and dispersion meet physical property requirements. The hollow-structured stirring blade and all material-contact components (mixing chamber, side plate, pressure hammer, stirring blade shaft) are constructed from full alloy material. This provides exceptional wear resistance, corrosion resistance, non-stick properties, and extended service life without requiring spraying or electroplating.
Product Advantages
- Motor and electrical components feature fully sealed construction for waterproof and dustproof operation
- Oil outlet equipped with pressure gauge with automatic high-pressure alarm
- Oil storage tank includes low-oil protection
- Programmable oil filling operation cycle with adjustable timing via control panel
- Dust and odor-proof collection shield installed above mixing tank with air outlet for factory dust collection system integration
- Comprehensive thermal insulation system
After-Sales Service & Support
During normal operation, non-consumable parts are guaranteed for one year. We provide on-site installation guidance and long-term technical support. Electrical components and motors are sourced from premium Taiwan and international brands.
