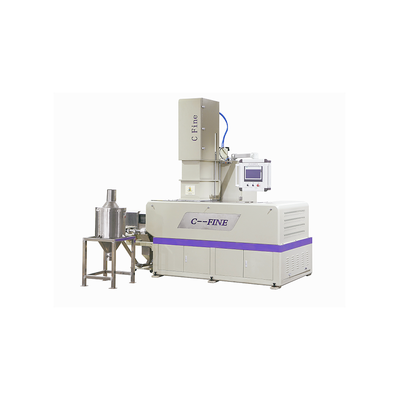

15L Combined Mixer Granulator Water Cooling Heating Low Energy Consumption
| MOQ: | 1 set |
| Price: | $66900-$77200 |
| Standard Packaging: | Wooden cases |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
Detail Information
Place of Origin
Guangdong,China
Brand Name
CFine
Certification
CE,ISO 9001
Model Number
CF-15L
Capacity:
15L
Mixing Main Motor:
18.5kw
Pressure Cylinder:
￠160
Speed (Front/Back)::
0-40/31r/min
Type Of Heating:
Electrical Heating
Type Of Cooling:
Water-cooling
Extrusion Motor:
5.5KW
Rotor Type:
Double-leaf Type
Highlight:
15L Combined Mixer Granulator
,Mixer Granulator Water Cooling Heating
Product Description
15L Combined Mixer Granulator - Low Energy Consumption with Water Cooling & Heating
Custom 15L Low Energy Consumption Combined Mixer-Granulator
Premium industrial mixer-granulator designed for efficient processing of metal powders and binder formulations with advanced temperature control capabilities.
Product Overview
This advanced mixer features all-alloy construction in material-contact components (mixing chamber, side plate, pressure hammer, mixing blade shaft), eliminating the need for spraying or electroplating. Engineered for stirring, dispersing, and mixing metal powders with binder formulations under controlled temperature conditions. The system processes materials into a mud mass, then extrudes and granulates them for subsequent manufacturing processes.
Technical Specifications
| Model | CF-1L35Z | CF-5L60Z | CF-10L75Z | CF-15L80Z |
|---|---|---|---|---|
| Capacity | 1L | 5L | 10L | 15L |
| Main Motor | 3.75kw | 7.5kw | 15kw | 18.5kw |
| Pressure Cylinder | ￠63 | ￠100 | ￠160 | ￠160 |
| RPM (front/rear) | 0-40/31 r/min | |||
| Type of Cooling | Ventilation cooling | Water-cooling | ||
| Type of Heating | Electric Heating | |||
| Gauge of the screw rod | 35mm | 60mm | 75mm | 80mm |
| Extrusion Motor | 2.2kw | 5.5kw | ||
| Grinding Motor | 0.75kw | |||
| Size | L1850*W1200*H2000mm | L2000*W1100*H2200mm | L2650*W1300*H2800mm | L2750*W1400*H2800mm |
| Weight | About 1200kg | About 2200kg | About 2800kg | About 3000kg |
| Power | 3∮ AC380V 50HZ | |||
Working Principle
The internal mixer operates using two counter-rotating rotors within the mixing chamber. Materials are fed through the inlet and drawn into the roller gap where they undergo intense shearing and compression. After passing through the gap, materials impact the sharp "W" shaped chamber edge, splitting into two streams that circulate along the front and rear chamber walls. This continuous cycle creates a closed mixing environment where materials experience optimal pressure and temperature conditions for thorough dispersion, plasticization, and formula activation.
Mixing System Design
Features a "W" shaped mixing chamber with an "M" shaped lower pressure cover for complete enclosure. The prismatic spiral stirring blade design eliminates dead angles, ensuring uniform material shearing and dispersion. All material-contact components (mixing chamber, side plate, pressure hammer, stirring blade shaft) are constructed from full alloy materials, providing exceptional wear resistance, corrosion resistance, non-stick properties, and extended service life without requiring additional coatings.
Key Advantages
- Fully sealed motor and electrical components for waterproof and dustproof operation
- Pressure gauge with automatic high-pressure alarm system
- External oil storage tank design
- Programmable oil filling cycles with adjustable timing via control panel
- Integrated dust and odor collection shield with air outlet for factory dust collection system connection
- Advanced thermal insulation system for energy efficiency
After-Sales Service & Support
One-year warranty on non-consumable parts during normal operation. Comprehensive on-site installation guidance and long-term technical support provided. Electrical components and motors feature premium imported components from Taiwan and international brands for reliable performance.
