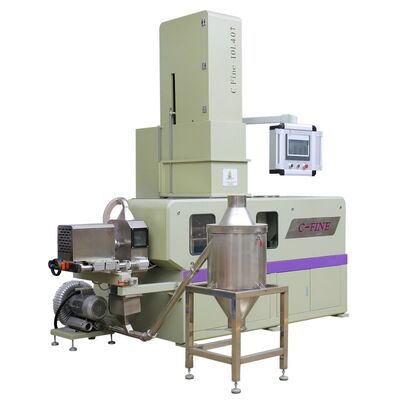

Industrial 1L Capacity Mixer And Granulator Machine For Stirring Dispersing Mixing
| MOQ: | 1 set |
| Price: | $27500-$37800 |
| Standard Packaging: | Wooden cases |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
Detail Information
Place of Origin
Guangdong,China
Brand Name
CFine
Certification
CE,ISO 9001
Model Number
CF-1L
Capacity:
1L
Mixing Main Motor:
3.75kw
Pressure Cylinder:
￠63
Speed (Front/Back)::
0-40/31r/min
Type Of Heating:
Electrical Heating
Type Of Cooling:
Forced Air Cooling
Extrusion Motor:
2.2KW
Rotor Type:
Double-leaf Type
Highlight:
Industrial Mixer And Granulator
,1L Mixer And Granulator Machine
Product Description
1L Capacity Mixer And Granulator Machine For Stirring Dispersing Mixing
Custom 1L Low Energy Consumption Combined Mixer-Granulator
This industrial mixer-granulator features all-alloy construction for components contacting materials (mixing chamber, side plate, pressure hammer, mixing blade shaft), eliminating the need for spraying or electroplating. Designed for stirring, dispersing, and mixing metal powders with binders at controlled temperatures, it processes materials into mud masses that are extruded and granulated before advancing to subsequent manufacturing stages.
Technical Specifications
| Model | CF-1L35Z | CF-5L60Z | CF-10L75Z | CF-15L80Z |
|---|---|---|---|---|
| Capacity | 1L | 5L | 10L | 15L |
| Main Motor | 3.75kw | 7.5kw | 15kw | 18.5kw |
| Pressure Cylinder | ￠63 | ￠100 | ￠160 | ￠160 |
| RPM (front/rear) | 0-40/31 r/min | |||
| Type of Cooling | Electric Heating | |||
| Type of Heating | Ventilation cooling | Water-cooling | ||
| Gauge of the screw rod | 35mm | 60mm | 75mm | 80mm |
| Extrusion Motor | 2.2kw | 5.5kw | ||
| Grinding Motor | 0.75kw | |||
| Size | L1850*W1200*H2000mm | L2000*W1100*H2200mm | L2650*W1300*H2800mm | L2750*W1400*H2800mm |
| Weight | About 1200kg | About 2200kg | About 2800kg | About 3000kg |
| Power | 3∮ AC380V 50HZ | |||
Working Principle
The internal mixer operates with two counter-rotating rotors in the mixing chamber that capture material from the feeding port and transport it through roller gaps. The material undergoes compression and shearing between rotors, then impacts the "W" shaped chamber edge, splitting into two streams that circulate along chamber walls and rotor surfaces. This closed-system process ensures thorough shearing, mixing, dispersion, and plasticization of formulation materials under controlled pressure and temperature conditions.
Mixing System Design
Featuring a "W" shaped mixing chamber with "M" shaped lower pressure cover for complete enclosure, the system employs prismatic spiral stirring blades that eliminate dead angles. The hollow blade structure and all-alloy construction of contact components provide exceptional wear resistance, corrosion resistance, non-stick properties, and extended service life without requiring additional surface treatments.
Product Advantages
- Fully sealed motor and electrical components for waterproof and dustproof operation
- Pressure gauge with automatic high-pressure alarm system
- Oil storage tank with low-oil protection
- Programmable oil filling cycles with adjustable timing via control panel
- Integrated dust and odor collection shield with air outlet for factory extraction system connectivity
- Advanced thermal insulation system
After-Sales Service & Support
One-year warranty on non-consumable parts during normal operation. We provide on-site installation guidance and long-term technical support. Note: Electrical components and motors feature imported Taiwan and international brands.
