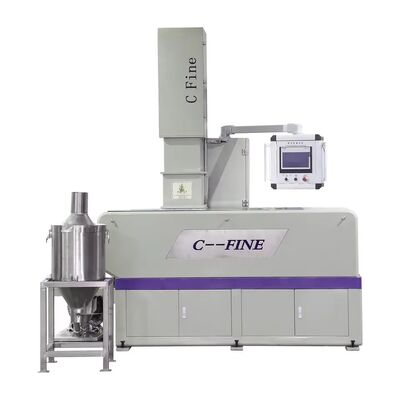

Customized 5L Combined Mixer Granulator Machine Low Energy Consumption
| MOQ: | 1 set |
| Price: | $34300-$44600 |
| Standard Packaging: | Wooden cases |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
Detail Information
Place of Origin
Guangdong,China
Brand Name
CFine
Certification
CE,ISO 9001
Model Number
CF-5L
Capacity:
5L
Mixing Main Motor:
7.5kw
Pressure Cylinder:
￠100
Speed (Front/Back)::
0-40/31r/min
Type Of Heating:
Electrical Heating
Type Of Cooling:
Forced Air Cooling
Extrusion Motor:
2.2kw
Rotor Type:
Double-leaf Type
Highlight:
Combined Mixer Granulator Machine
,5L Mixer Granulator Machine
Product Description
Customized 5L Combined Mixer Granulator Machine
Low Energy Consumption Industrial Mixing and Granulation Solution
Product Overview
This custom low energy consumption combined mixer-granulator features all-alloy construction for components contacting materials (mixing chamber, side plate, pressure hammer, mixing blade shaft), eliminating the need for spraying or electroplating. Designed for stirring, dispersing, and mixing metal powders with binders and other formulations at controlled temperatures. The system processes materials into a mud mass, then extrudes and granulates them for subsequent manufacturing processes.
Technical Specifications
| Model | CF-1L35Z | CF-5L60Z | CF-10L75Z | CF-15L80Z |
|---|---|---|---|---|
| Capacity | 1L | 5L | 10L | 15L |
| Main Motor | 3.75kw | 7.5kw | 15kw | 18.5kw |
| Pressure Cylinder | ￠63 | ￠100 | ￠160 | ￠160 |
| RPM (front/rear) | 0-40/31 r/min | |||
| Type of Cooling | Electric Heating | Ventilation cooling / Water-cooling | ||
| Gauge of the screw rod | 35mm | 60mm | 75mm | 80mm |
| Extrusion Motor | 2.2kw | 5.5kw | ||
| Grinding Motor | 0.75kw | |||
| Size | L1850*W1200*H2000mm | L2000*W1100*H2200mm | L2650*W1300*H2800mm | L2750*W1400*H2800mm |
| Weight | About 1200kg | About 2200kg | About 2800kg | About 3000kg |
| Power | 3∮ AC380V 50HZ | |||
Working Principle
The internal mixer operates with two rotors rotating at specific speed ratios within the mixing chamber. Material is fed through the inlet and drawn between the rotors, where it undergoes compression and shearing. After passing through the roller gap, the material impacts the "W" shaped chamber edge, splitting into two streams that flow along the front and rear chamber walls before returning to the rotor top. This closed-system process ensures thorough shearing, mixing, dispersion, and plasticization under controlled pressure and temperature conditions, optimizing formulation performance.
Mixing System Design
Features a "W" shaped mixing chamber with an "M" shaped lower pressure cover creating a fully enclosed mixing space. The prismatic spiral stirring blade design eliminates dead angles, ensuring complete material shearing and dispersion. Hollow blade construction and all-alloy material contact surfaces provide exceptional wear resistance, corrosion resistance, non-stick properties, and extended service life without requiring spraying or electroplating.
Key Advantages
- Fully sealed motor and electrical components for waterproof and dustproof operation
- Pressure gauge with automatic high-pressure alarm system
- Oil storage tank with low oil protection
- Programmable oil filling cycles with adjustable timing via control panel
- Dust and odor-proof collection shield with air outlet for factory dust collection system integration
- Advanced thermal insulation system
After-Sales Service & Support
One-year warranty on non-consumable parts during normal operation. We provide on-site installation guidance and long-term technical support to ensure optimal performance.
Note: Electrical components and motors are sourced from premium Taiwan and international brands.
