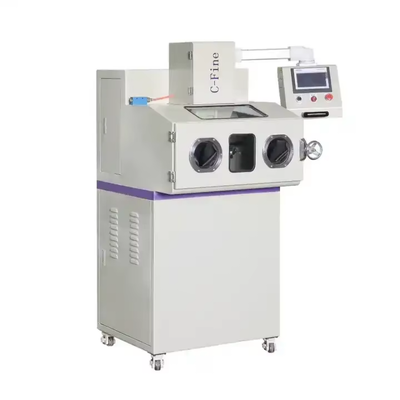

Customized 3L Alloy Structure Atmosphere Protection Mixer With PLC Control System
| MOQ: | 1 set |
| Price: | $33200-$42700 |
| Standard Packaging: | Wooden cases |
| Payment Method: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Detail Information
Place of Origin
Guangdong,China
Brand Name
CFine
Certification
CE,ISO 9001
Model Number
CF-3LQF
Effective Mixing Volume:
3-L
Batch Feeding:
6-9KG
Main Motor:
7.5KW
Frequency Converter:
4KW
Pressure Cylinder:
￠80
Speed (front/rear):
0 - 40/31R/M
Heating Method:
Electric Heating
The Cooling Industry:
Ventilation Cooling
Pitch Diameter Of Screw Rod:
35MM
Weight:
2080KG
Highlight:
Atmosphere Protection Mixer 3L
,Atmosphere Protection Mixer PLC Control
,Alloy Structure Atmosphere Protection Mixer
Product Description
Customized 3L Alloy Structure Atmosphere Protection Mixer With PLC Control System
Custom 3L Protection Atmosphere Inner Mixer
Product Overview
Constructed entirely from imported alloy materials without requiring coating or plating, this internal mixer efficiently processes high-viscosity and high-strength powders including ceramics, metallurgical compounds, and titanium/aluminum alloys. It delivers superior internal mixing and refining performance across diverse raw materials.
Technical Specifications
| Model | CF-1LQF | CF-3LQF | CF-5LQF |
|---|---|---|---|
| Effective Mixing Volume (L) | 1 | 3 | 5 |
| Batch Feeding (depending on material) | 2-5kg | 6-9kg | 10-15kg |
| Main Motor (KW) | 4 | 7.5 | 11 |
| Frequency Converter (KW) | 4 | Accept customization | |
| Pressure Cylinder | ￠63 | ￠80 | ￠100 |
| Speed (front/rear) | 0 - 40/31 R/min | 0 - 40/31 R/min | 0 - 40/31 R/min |
| Heating Method | Electric heating | Electric heating | Electric heating |
| Cooling System | Ventilation cooling | Water cooling | Water cooling |
| Pitch Diameter Of Screw Rod | 35mm | Accept customization | |
| Weight (kg) | 1200 | 2080 | 2500 |
Key Advantages
- Fully open inner chamber design enables easy cleaning without dead ends
- PLC control system intelligently monitors and adjusts oxygen content with positive pressure discharge and automatic inert gas recharge
- Dual atmosphere protection ensures mixing occurs under positive pressure conditions
Operating Principle
The two rotors within the mixing chamber rotate at specific speed ratios, capturing material from the feeding port and directing it through the roller gap where it undergoes compression and shearing. After passing through the gap, material impacts the sharp edge of the "W" shaped mixing chamber, dividing into two streams that flow along the front and rear chamber walls before returning to the rotor top. Within the sealed chamber, materials experience intensive shearing and mixing under controlled pressure and temperature, ensuring complete dispersion and plastification for optimal formula performance.
Technical Features
- Advanced anti-leakage powder system with mechanical shaft seal technology and self-lubricating seal rings maintains compression during operation, reducing wear, noise, and material contamination while simplifying cleaning and color changes
- Through-type heating system provides 50% faster heating efficiency with more uniform temperature distribution compared to traditional heating plates
- Complex tube-belt chamber design ensures excellent heat exchange and precise temperature control, while water-cooled rotors prevent material sticking and enhance dispersion uniformity
After-Sales Service
Non-consumable parts are guaranteed for one year during normal operation. We provide on-site installation guidance and long-term technical support.
Note: Electrical components and motors are imported from Taiwan and international brands.
