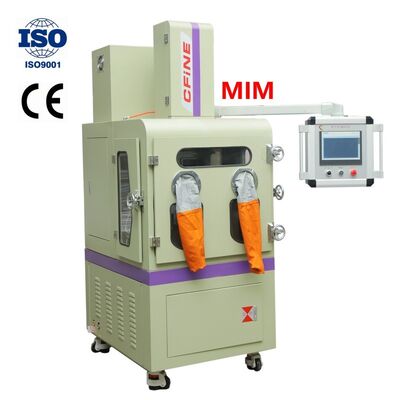

3L 7.5KW Atmosphere Protection Mixer Electric Heating For Ceramic Powder
| MOQ: | 1 set |
| Price: | $33200-$42700 |
| Standard Packaging: | Wooden cases |
| Payment Method: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Detail Information
Place of Origin
Guangdong,China
Brand Name
CFine
Certification
CE,ISO 9001
Model Number
CF-3LQF
Effective Mixing Volume:
3L
Batch Feeding:
6-9kg
Main Motor:
7.5kw
Frequency Converter:
4KW
Pressure Cylinder:
￠80
Speed (front/rear):
0 - 40/31R/MM
Heating Method:
Electric Heating
The Cooling Industry:
Ventilation Cooling
Pitch Diameter Of Screw Rod:
35MM
Weight:
2080kg
Highlight:
3L Atmosphere Protection Mixer
,Electric Heating Atmosphere Protection Mixer
,Atmosphere Mixer For Ceramic Powder
Product Description
Custom High Precision 3L Protection Atmosphere Inner Mixer
This internal mixer is constructed from imported all-alloy materials (requiring no spraying or electroplating), making it ideal for high-viscosity and high-hardness applications including powder metallurgy, ceramic powder, and titanium/aluminum alloy powder. Designed for internal mixing and refining of various raw materials.
Technical Specifications
| Model | CF-1LQF | CF-3LQF | CF-5LQF |
|---|---|---|---|
| Effective Mixing Volume (L) | 1 | 3 | 5 |
| Batch Feeding (depending on material) | 2-5KG | 6-9KG | 10-15KG |
| Main Motor (KW) | 4 | 7.5 | 11 |
| Frequency Converter (KW) | 4 | Accept customization | |
| Pressure Cylinder | ￠63 | ￠80 | ￠100 |
| Speed (front/rear) | 0 - 40/31r/min | 0 - 40/31r/min | 0 - 40/31r/min |
| Heating Method | Electric heating | Electric heating | Electric heating |
| The Cooling Industry | Ventilation cooling | Water cooling | Water cooling |
| Pitch Diameter Of Screw Rod | 35mm | Accept customization | |
| Weight (KG) | 1200 | 2080 | 2500 |
Product Superiority
- Fully open inner chamber design for easy cleaning without dead ends
- PLC control system with intelligent operation to discharge oxygen content under positive pressure and automatically recharge inert gas
- Double atmosphere protection device ensures mixing process occurs under positive pressure conditions
Operating Principle
The two rotors in the mixing chamber rotate relative to each other at a specific speed ratio, clamping material from the feeding port and bringing it into the roller gap where it undergoes squeezing and shearing by the rotors. After passing through the roller gap, the material hits the sharp edge of the "W" shaped mixing chamber and divides into two parts, returning to the top of the rotor along the gaps between the front/rear chamber walls and rotors. In the closed mixing chamber, materials are strongly sheared and mixed under controlled pressure and temperature conditions, ensuring complete dispersion and plasticization of formula materials for optimal performance.
Mixing System
Features a "W" shaped mixing chamber with an "M" shaped lower pressure cover forming a fully enclosed mixing space. The stirring blade employs a prismatic spiral design without dead angles, enabling effective shearing and dispersion of materials to meet physical property requirements. The hollow-structured stirring blade, made from imported all-alloy material (no spraying or electroplating required), offers excellent wear resistance, corrosion resistance, anti-sticking properties, and extended service life.
Technical Advantages
- Advanced anti-leakage powder device using mechanical shaft seal tightening technology with self-lubricating seal rings maintains compression and sealing during mixing, reducing wear and noise while improving cleaning, color change, and disassembly efficiency
- Through-type heating system provides faster heating and more uniform temperature transfer with 50% higher efficiency than traditional heating plates, controlled by PLC program system
- Complex tube-belt design in mixing chamber ensures excellent heat exchange and precise temperature control, with water-cooled rotor preventing material sticking and enabling uniform dispersion
After-sales Service
One-year warranty on non-consumable parts during normal use. We provide on-site installation guidance and long-term technical support.
Note: Electrical components and motors are imported from Taiwan and foreign brands.
