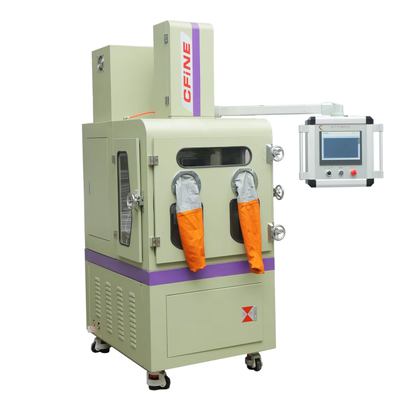

5L Atmosphere Protection Mixer Machine 11KW For Ceramic Materials
| MOQ: | 1 set |
| Price: | $38700-$42700 |
| Standard Packaging: | Wooden cases |
| Payment Method: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Detail Information
Place of Origin
Guangdong,China
Brand Name
CFine
Certification
CE,ISO 9001
Model Number
CF-5LQF
Effective Mixing Volume:
5L
Batch Feeding:
10-15KG
Main Motor:
11KW
Frequency Converter:
4KW
Pressure Cylinder:
￠100
Speed (front/rear):
0 - 40/31R/mm
Heating Method:
Electric Heating
The Cooling Industry:
Ventilation Cooling
Pitch Diameter Of Screw Rod:
35MM
Weight:
2500KG
Highlight:
5L Atmosphere Protection Mixer Machine
,Atmosphere Mixer for Ceramic Materials
,Atmosphere Protection Mixer Machine 11KW
Product Description
5L Atmosphere Protection Mixer Machine 11KW For Ceramic Materials
Custom Low Price 5L Protection Atmosphere Inner Mixer
Product Overview
Crafted from premium imported alloy, this internal mixer requires no spraying or electroplating treatment. It is ideal for demanding applications involving high-viscosity and high-hardness powders—such as ceramic materials, powder metallurgy, and titanium/aluminum alloys—and ensures reliable internal mixing and refining for various formulations.
Technical Specifications
| Model | CF-1LQF | CF-3LQF | CF-5LQF |
|---|---|---|---|
| Effective mixing volume (L) | 1 | 3 | 5 |
| Batch Feeding (depending on material) | 2-5KG | 6-9KG | 10-15KG |
| Main Motor (KW) | 4 | 7.5 | 11 |
| Frequency Converter (KW) | 4 | Accept customization | |
| Pressure Cylinder | ￠63 | ￠80 | ￠100 |
| Speed (front/rear) | 0 - 40/31r/min | 0 - 40/31r/min | 0 - 40/31r/min |
| Heating Method | Electric heating | Electric heating | Electric heating |
| Cooling System | Ventilation cooling | Water cooling | Water cooling |
| Pitch Diameter Of Screw Rod | 35mm | Accept customization | |
| Weight (KG) | 1200 | 2080 | 2500 |
Product Advantages
- The inner chamber can be fully opened, making it easy to clean without any dead ends
- PLC control system connects preset values with detection values, featuring intelligent operation to discharge oxygen content under positive pressure and automatically recharge inert gas
- Double atmosphere protection device ensures the mixing process occurs under positive pressure conditions
Operating Principle
The two rotors in the mixing chamber rotate relative to each other under a specific speed ratio, clamping material from the feeding port and bringing it into the roller gap to be squeezed and sheared by the rotors. After passing through the roller gap, it hits the sharp edge of the "W" shaped mixing chamber and divides into two parts, returning to the top of the rotor along the gaps between the front/rear chamber walls and rotors. In the closed mixing chamber, material undergoes strong shearing and mixing under controlled pressure and temperature conditions, ensuring formula materials are fully dispersed and plasticized for optimal performance.
Mixing System
The mixing chamber features a "W" shape with an "M" shaped lower pressure cover forming a fully enclosed mixing space. The stirring blade uses a prismatic spiral design without dead angles, enabling material to be sheared and dispersed to meet physical property requirements. The hollow-structured stirring blade contacts material through imported all-alloy components (requiring no spraying or electroplating), providing wear resistance, corrosion resistance, reduced material sticking, and extended service life.
Technical Advantages
- CFine's anti-leakage powder device uses mechanical shaft seal tightening technology with self-lubricating seal rings that maintain compression during mixing, reducing wear and noise while improving cleaning, color change, and disassembly efficiency
- Through-type heating system provides faster heating and more even temperature transfer with 50% higher efficiency than traditional heating plates, controlled by PLC program system
- Mixing chamber internal structure features complex tube-belt design for excellent heat exchange and precise temperature control, with water-cooled rotors preventing sticky materials and ensuring even dispersion
After-sales Service
During normal use, non-consumable parts are guaranteed for one year. We provide on-site installation guidance and long-term technical support.
Note: Electrical components and motors are imported from Taiwan and foreign brands.
