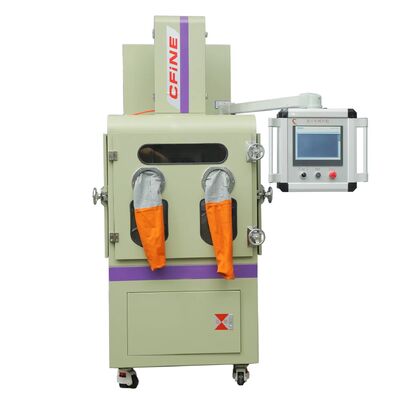

1L Protection Atmosphere Internal Mixer Machine High Precision Ventilation Cooling
| MOQ: | 1 set |
| Price: | $25500-$34900 |
| Standard Packaging: | Wooden cases |
| Payment Method: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Detail Information
Place of Origin
Guangdong,China
Brand Name
CFine
Certification
CE,ISO 9001
Model Number
CF-1LQF
Effective Mixing Volume:
1L
Batch Feeding:
2-5kg
Main Motor:
4kw
Frequency Converter:
4kw
Pressure Cylinder:
￠63
Speed (front/rear):
0 - 40/31r/ Min
Heating Method:
Electric Heating
The Cooling Industry:
Ventilation Cooling
Pitch Diameter Of Screw Rod:
35mm
Weight:
1200kg
Highlight:
Protection Atmosphere Internal Mixer
,1L Internal Mixer Machine
,Protection Atmosphere Internal Mixer Machine
Product Description
1L Protection Atmosphere Internal Mixer Machine
High Precision Ventilation Cooling System for Advanced Material Processing
Product Overview
Custom high precision 1L protection atmosphere inner mixer constructed with imported all-alloy materials (no spraying or electroplating required). Designed for high-viscosity and high-hardness materials including powder metallurgy, ceramic powder, titanium/aluminum alloy powder, and various raw material mixing and refining applications.
Technical Specifications
| Model | CF-1LQF | CF-3LQF | CF-5LQF |
|---|---|---|---|
| Effective Mixing Volume (L) | 1 | 3 | 5 |
| Batch Feeding (depending on material) | 2-5KG | 6-9KG | 10-15KG |
| Main Motor (KW) | 4 | 7.5 | 11 |
| Frequency Converter (KW) | 4 | Accept customization | |
| Pressure Cylinder | ￠63 | ￠80 | ￠100 |
| Speed (front/rear) | 0 - 40/31r/min | 0 - 40/31r/min | 0 - 40/31r/min |
| Heating Method | Electric heating | Electric heating | Electric heating |
| Cooling System | Ventilation cooling | Water cooling | Water cooling |
| Pitch Diameter Of Screw Rod | 35mm | Accept customization | |
| Weight (KG) | 1200 | 2080 | 2500 |
Product Superiority
- Fully open inner chamber design for easy cleaning without dead ends
- PLC control system with intelligent operation for oxygen content discharge and inert gas recharge automation
- Double atmosphere protection device ensuring mixing process occurs under positive pressure conditions
Operating Principle
The two rotors in the mixing chamber rotate relative to each other at specific speed ratios, clamping material from the feeding port and bringing it into the roller gap where it undergoes squeezing and shearing by the rotors. After passing through the roller gap, material hits the sharp edge of the "W" shaped mixing chamber and divides into two parts, returning to the rotor top along the gaps between chamber walls and rotors. In this closed mixing chamber under controlled pressure and temperature, materials experience strong shearing and mixing for optimal dispersion and plasticization.
Mixing System
Features a "W" shaped mixing chamber with "M" shaped lower pressure cover creating a fully enclosed mixing space. The prismatic spiral designed stirring blades eliminate dead angles, ensuring thorough material shearing and dispersion. Hollow structure stirring blades use imported all-alloy material contact surfaces (no spraying or electroplating required), providing wear resistance, corrosion resistance, non-stick properties, and extended service life.
Technical Advantages
- Advanced anti-leakage powder device with mechanical shaft seal tightening technology and self-lubricating seal rings for enhanced sealing during mixing
- Through-type heating system provides 50% higher heating efficiency than traditional plates with faster heating and more even temperature distribution
- Complex tube-belt design in mixing chamber ensures excellent heat exchange and precise temperature control
- Water-cooled rotor system prevents material sticking and enables precise temperature control for uniform material dispersion
After-sales Service
One-year warranty on non-consumable parts during normal use. We provide on-site installation guidance and long-term technical support.
Note: Electrical components and motors are imported from Taiwan and international brands.
