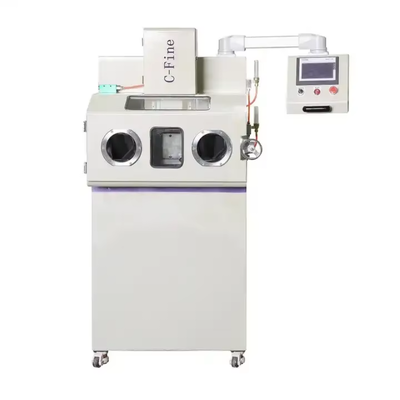

Custom Atmosphere Protection Mixer 1L Protection Atmosphere Inner Mixer
| MOQ: | 1 set |
| Price: | $25500-$34900 |
| Standard Packaging: | Wooden cases |
| Payment Method: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Detail Information
Place of Origin
Guangdong,China
Brand Name
CFine
Certification
CE,ISO 9001
Model Number
CF-1LQF
Effective Mixing Volume:
1L
Batch Feeding:
2-5KG
Main Motor:
4Kw
Frequency Converter:
4Kw
Pressure Cylinder:
￠63
Speed (front/rear):
0 - 40/31r/ M
Heating Method:
Electric Heating
The Cooling Industry:
Ventilation Cooling
Pitch Diameter Of Screw Rod:
35MM
Weight:
1200Kg
Highlight:
Custom Atmosphere Protection Mixer
,1L Protection Atmosphere Inner Mixer
Product Description
Custom Atmosphere Protection Mixer 1L
Custom Low Price 1L Protection Atmosphere Inner Mixer
Product Overview
This internal mixer is constructed from imported full-alloy materials, eliminating the need for spraying or electroplating. Designed for processing high-viscosity, high-hardness materials including powder metallurgy feedstock, ceramic powders, and titanium or aluminum alloy powders. Well-suited for internal mixing and refining of diverse raw materials.
Technical Specifications
| Model | CF-1LQF | CF-3LQF | CF-5LQF |
|---|---|---|---|
| Effective Mixing Volume (L) | 1 | 3 | 5 |
| Batch Feeding (depending on material) | 2-5Kg | 6-9Kg | 10-15Kg |
| Main Motor (KW) | 4 | 7.5 | 11 |
| Frequency Converter (KW) | 4 | Accept customization | |
| Pressure Cylinder | ￠63 | ￠80 | ￠100 |
| Speed (front/rear) | 0 - 40/31r/m | 0 - 40/31r/m | 0 - 40/31r/m |
| Heating Method | Electric heating | Electric heating | Electric heating |
| Cooling System | Ventilation cooling | Water cooling | Water cooling |
| Pitch Diameter Of Screw Rod | 35mm | Accept customization | |
| Weight (Kg) | 1200 | 2080 | 2500 |
Key Features
- Fully open inner chamber design for easy cleaning without dead ends
- PLC control system with intelligent operation to discharge oxygen content under positive pressure and automatically recharge inert gas
- Double atmosphere protection device ensures mixing process occurs under positive pressure conditions
Mixing System Design
Features a "W" shaped mixing chamber with "M" shaped lower pressure cover to form a fully enclosed mixing space. The prismatic spiral stirring blade design eliminates dead angles, providing optimal material shearing and dispersion. Hollow stirring blades constructed from imported all-alloy material offer superior wear resistance, corrosion resistance, non-stick properties, and extended service life.
Technical Advantages
- Advanced anti-leakage powder device with mechanical shaft seal tightening technology and self-lubricating seal rings for enhanced sealing performance
- Through-type heating system provides 50% higher heating efficiency than traditional heating plates with faster heating and more uniform temperature distribution
- Complex tube-belt design in mixing chamber ensures excellent heat exchange and precise temperature control
- Water-cooled rotor prevents material sticking and enables precise temperature control for uniform material dispersion
After-Sales Service & Support
Non-consumable parts guaranteed for one year during normal use. We provide on-site installation guidance and long-term technical support. Electrical components and motors are imported from Taiwan and international brands.
