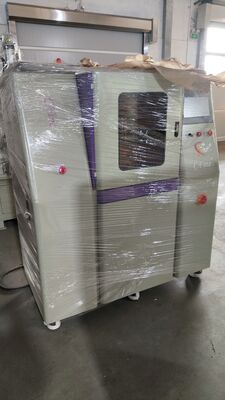

PLC Control 20kW Plate Vulcanizing Machine 500x500mm Plate Vulcanizing Press
| MOQ: | 1 set |
| Price: | $13600-$22500 |
| Standard Packaging: | Wooden cases |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
Detail Information
Place of Origin
Guangdong,China
Brand Name
CFine
Certification
CE,ISO 9001
Model Number
CF-500B
Material:
Imported Alloy
Capacity:
30~T
WorkingArea:
500mM*500mM
Number Of Floors:
2 Floors
Cooling And Heating Plate:
One For Heating And One For Cooling
Total Power:
20kW
Weight:
1200kG
Custom:
The Customer Made A Request.
Highlight:
20kW Plate Vulcanizing Machine
,PLC Control Plate Vulcanizing Machine
,500x500mm Plate Vulcanizing Press
Product Description
20kW Plate Vulcanizing Machine Vulcanising Press 500*500mm With PLC Control
Custom 500*500mm Plate Vulcanizing Machine
This advanced vulcanizing machine integrates PLC-controlled color touch screen technology with a user-friendly interface, enabling operators to precisely set key parameters including pressure, temperature, duration, and exhaust cycles. The system provides real-time tracking and display of the vulcanization process, combining robust construction with intelligent automation for maximum efficiency.
Platen Press Technical Specifications
| Model | CF-300B | CF-400B | CF-500B | Remarks |
|---|---|---|---|---|
| Capacity (T) | 30 | 30 | 30 | Working pressure, working area, number of floors, and cooling/heating plates can be customized according to customer requirements |
| Working Area (mm) | 300*300 | 400*400 | 500*500 | |
| Number of Floors | Two floors | Two floors | Two floors | |
| Cooling and Heating Plate | One for heating One for cooling |
One for heating One for cooling |
One for heating One for cooling |
|
| Total Power (kW) | 11 | 15 | 20 | |
| Weight (kg) | 750 | 950 | 1200 |
Product Superiority
Heating Plate
Constructed from imported high-temperature resistant steel with deep carbonization and hard chrome plating surface treatments. Features include rapid heat transfer, corrosion resistance, high hardness, and deformation resistance. Equipped with built-in heaters and temperature sensors for high power output, fast heating, sensitive temperature measurement, and minimal temperature variance.
Cold Conduction Plate
Manufactured from aluminum material with anodized surface treatment for superior corrosion resistance and rapid heat conduction.
Guide Columns
Four hardened and precisely positioned columns and hydraulic cylinders supported by a thick steel plate base. Features self-lubricating bronze bearings for smooth, noiseless vertical movement. The press includes comprehensive steel safety protection surrounding the top and rear areas, with integrated thermocouples positioned near the surface for accurate temperature monitoring.
Operating Principle
Raw materials are placed in the mold where rubber is shaped under controlled pressure and temperature. After reaching the melting point during the designated time cycle, the process yields products with specific physical properties and characteristics.
Applications
Primarily used in rubber and plastic products manufacturing, polyolefins, PVC, films, coils, profiles production, polymer blending, pigments, masterbatches, stabilizers, and related industries. The machine serves to test and compare physical property changes in raw materials after molding processes.
- Detection of gel (fish eyes), black spots, stains, and other imperfections in raw materials
- Pressing and sample preparation of raw materials
- Comprehensive physical property testing
- Material research and development applications
Ideal for factory quality control of supplier raw materials, comparative analysis of similar products, and research & development applications in academic and industrial settings. Provides valuable reference data prior to mass production.
