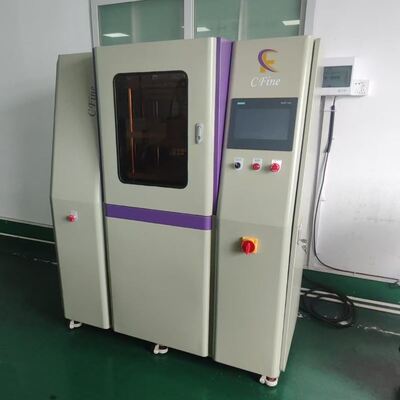

Automatic Plate Vulcanizing Machine PLC Control 500x500mm Rubber Vulcanizing Equipment
| MOQ: | 1 set |
| Price: | $13600-$22500 |
| Standard Packaging: | Wooden cases |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
Detail Information
Place of Origin
Guangdong,China
Brand Name
CFine
Certification
CE,ISO 9001
Model Number
CF-500B
Material:
Imported Alloy
Capacity:
30~T
WorkingArea:
500Mm*500Mm
Number Of Floors:
2 Floors
Cooling And Heating Plate:
One For Heating And One For Cooling
Total Power:
20Kw
Weight:
1200Kg
Custom:
The Customer Made A Request.
Highlight:
Automatic Plate Vulcanizing Machine
,Plate Vulcanizing Machine PLC Control
,500x500mm Rubber Vulcanizing Equipment
Product Description
PLC Automatic Plate Vulcanizing Machine 500*500mm
CFine Custom 500*500mm Plate Vulcanizing Machine
This advanced rubber vulcanizing equipment features a PLC-based touch screen controller and human-machine interface for precise adjustment of pressure, heat, timing, and exhaust frequency parameters. The system provides real-time monitoring of the vulcanization process with fully automated operations, delivering streamlined design combined with high efficiency and intelligent functionality.
Technical Specifications
| Model | CF-300B | CF-400B | CF-500B | Remarks |
|---|---|---|---|---|
| Capacity | 30T | 30T | 30T | Working pressure, working area, number of floors, and cooling/heating plates can be customized according to customer requirements |
| Working Area | 300mm * 300mm | 400mm * 400mm | 500mm * 500mm | |
| Number of Floors | Two floors | Two floors | Two floors | |
| Cooling and Heating Plate | One for heating One for cooling |
One for heating One for cooling |
One for heating One for cooling |
|
| Total Power | 11kw | 15kw | 20kw | |
| Weight | 750kg | 950kg | 1200kg |
Product Features
Heating Plate
Constructed from imported high-temperature resistant steel with deep carbonization and hard chrome plating surface treatments. Features fast heat transfer, corrosion resistance, high hardness, and no deformation. Built-in heaters and temperature sensors provide high power output, rapid heating, sensitive and uniform temperature measurement with minimal error range.
Cold Conduction Plate
Aluminum material with anodized surface treatment for corrosion resistance and fast heat conduction.
Guide Columns
Four hardened and precisely positioned columns with hydraulic cylinders supported by a thick steel plate base. Self-lubricating bronze bearings ensure smooth, noiseless lifting and lowering. Heavy steel surrounds the top and rear for operator safety protection. Upper layer features steel plates with inserted thermocouples near the surface.
Operating Principle
Raw materials are placed in the mold where rubber is shaped under rated pressure and temperature. After reaching the melting point over a specified period, the product achieves defined physical properties.
Applications
Primarily used in rubber and plastic products, polyolefins, PVC, films, coils, profiles production, polymer blending, pigments, masterbatches, and stabilizers industries. Designed to test physical property changes and comparisons of raw materials after molding, including color dispersion, light transmittance, surface glossiness, black spot detection, strength, plasticity, and hardness after adding auxiliary materials.
Ideal for factory quality control of supplier raw materials, product comparisons, and research and development in academic institutions. Provides valuable reference data before mass production.
Typical Applications:
- Detection of gel (fish eyes), black spots, and stains in raw materials
- Pressing and sample preparation of raw materials
- Physical property testing
- Material research and development
