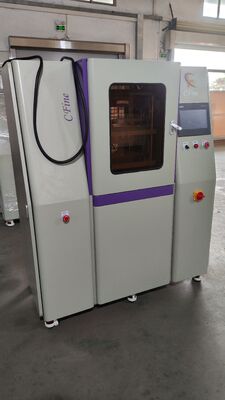

Industrial 2 Floors Plate Rubber Vulcanizing Press Machine 300x300mm
| MOQ: | 1 set |
| Price: | $10200-$19500 |
| Standard Packaging: | Wooden cases |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
Detail Information
Place of Origin
Guangdong,China
Brand Name
CFine
Certification
CE,ISO 9001
Model Number
CF-300B
Material:
Imported Alloy
Capacity:
30T
WorkingArea:
300MM*300MM
Number Of Floors:
Two Floors
Cooling And Heating Plate:
One For Heating And One For Cooling
Total Power:
11KW
Weight:
750KG
Custom:
Customer's Requirements
Highlight:
2 Floors Vulcanizing Press Machine
,Vulcanizing Press Machine 300x300mm
,Industrial Rubber Vulcanizing Machine
Product Description
Industrial 2 Floors Plate Rubber Vulcanizing Press Machine 300*300mm
Custom 300*300mm Plate Vulcanizing Machine for Rubber Products
This advanced vulcanizing press features a PLC program with color touch panel and HMI operating system, enabling easy configuration of process parameters including temperature, pressure, cycle time, and exhaust counts. Real-time vulcanization progress monitoring and automated program execution ensure intelligent, efficient operation with straightforward structural design.
Technical Specifications
| Model | CF-300B | CF-400B | CF-500B | Customization Options |
|---|---|---|---|---|
| Capacity | 30T | 30T | 30T | Working pressure, working area, number of floors, and cooling/heating plates can be customized according to customer requirements |
| Working Area | 300mm * 300mm | 400mm * 400mm | 500mm * 500mm | |
| Number of Floors | Two floors | Two floors | Two floors | |
| Cooling & Heating Plate | One heating, One cooling | One heating, One cooling | One heating, One cooling | |
| Total Power | 11KW | 15KW | 20KW | |
| Weight | 750kg | 950kg | 1200kg |
Product Features
Heating Plate
Constructed from imported high-temperature resistant steel with deep carbonization and hard chrome plating surface treatments. Features fast heat transfer, corrosion resistance, high hardness, and deformation resistance. Built-in heaters and temperature sensors provide high power output, rapid heating, sensitive temperature measurement, and minimal temperature variance.
Cold Conduction Plate
Aluminum construction with anodized surface treatment for corrosion resistance and rapid heat conduction.
Guide Columns
Four hardened, precisely positioned columns and hydraulic cylinders supported by thick steel plate base. Self-lubricating bronze bearings ensure smooth, noiseless lifting and lowering. Heavy steel surrounds the top and rear for operator safety protection. Upper layer features steel plate with inserted thermocouples near the surface.
Operating Principle
Raw materials are placed in the mold where rubber is shaped under rated pressure and temperature. After reaching the melting point over a specified period, the product achieves defined physical properties.
Applications
Primarily used in rubber and plastic products, polyolefins, PVC, films, coils, profiles production, polymer blending, pigments, masterbatches, and stabilizers industries. Designed to test physical property changes and comparisons of raw materials after molding.
- Detection of gel (fish eyes), black spots, and stains in raw materials
- Pressing and sample preparation of raw materials
- Physical property testing
- Material research and development
- Quality inspection of supplier raw materials
- Comparative analysis of similar products
- New product development in academic and industrial R&D
- Pre-production evaluation for mass manufacturing
