Precision 400×400mm Plate Vulcanizing Machine 2 Floors Rubber Vulcanizer Press
| MOQ: | 1 set |
| Price: | $13900-$20600 |
| Standard Packaging: | Wooden cases |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
Detail Information
Place of Origin
Guangdong,China
Brand Name
CFine
Certification
CE,ISO 9001
Model Number
CF-400B
Material:
Imported Alloy
Capacity:
50-T
WorkingArea:
400MM*400MM
Number Of Floors:
2 Floors
Cooling And Heating Plate:
One For Heating And One For Cooling
Total Power:
15KW
Weight:
800KG
Custom:
The Customer Made A Request
Highlight:
400×400mm Plate Vulcanizing Machine
,Precision Plate Vulcanizing Machine
,Rubber Vulcanizer Press
Product Description

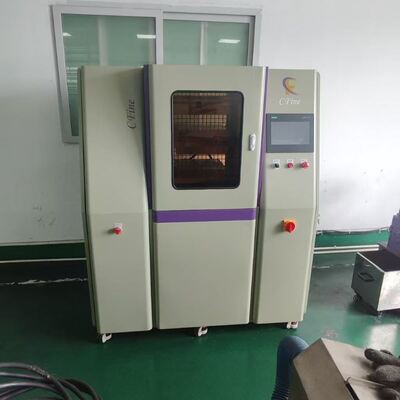

Precision 400*400mm Plate Vulcanizing Machine 2 Floors Rubber Vulcanizer Press
CFine Custom New 400*400mm Plate Vulcanizing Machine
Product Overview
This advanced vulcanizing machine features a PLC program color touch screen controller with an intuitive man-machine interface operation system. Operators can easily set critical parameters including pressure, temperature, time, and exhaust cycles while monitoring the entire vulcanization process in real-time. All programs are automatically executed, delivering intelligent, efficient operation with a simple, reliable structure.
Technical Specifications
| Model | CF-300B | CF-400B | CF-500B | Customization Options |
|---|---|---|---|---|
| Capacity | 30T | 30T | 30T | Working pressure, working area, number of floors, and cooling/heating plates can be customized according to customer requirements |
| Working Area | 300mm*300mm | 400mm*400mm | 500mm*500mm | |
| Number of Floors | Two floors | Two floors | Two floors | |
| Cooling and Heating Plate | One heating, One cooling | One heating, One cooling | One heating, One cooling | |
| Total Power | 11kw | 15kw | 20kw | |
| Weight | 750kg | 950kg | 1200kg |
Premium Features
- Heating Plate: Constructed from imported high-temperature resistant steel with deep carbonization and hard chrome plating surface treatments. Features fast heat transfer, corrosion resistance, high hardness, and deformation resistance. Built-in heaters and temperature sensors provide high power output, rapid heating, sensitive temperature measurement, and minimal temperature variance.
- Cold Conduction Plate: Aluminum construction with anodized surface treatment for superior corrosion resistance and rapid heat conduction.
- Guide Columns: Four hardened, precisely positioned columns and hydraulic cylinders supported by a robust steel plate base. Self-lubricating bronze bearings ensure smooth, noiseless lifting and lowering. Heavy steel surrounds the top and rear for enhanced operator safety protection. Upper layer features steel plates with integrated thermocouples near the surface.
Applications
Primarily used in rubber and plastic products manufacturing, polyolefins, PVC, films, coils, profiles production, polymer blending, pigments, masterbatches, and stabilizers industries. Designed to test and compare physical property changes in raw materials after molding processes.
Applications include evaluating color dispersion, light transmittance, material surface glossiness, detecting black spots, and measuring strength, plasticity, and hardness after adding auxiliary materials.
Ideal for factory quality control of supplier raw materials, comparative analysis of similar products, and research and development in academic and industrial settings. Provides valuable reference data before mass production.
- Detection of gel (fish eyes), black spots, and stains in raw materials
- Pressing and sample preparation of raw materials
- Physical property testing and analysis
- Material research and development applications
