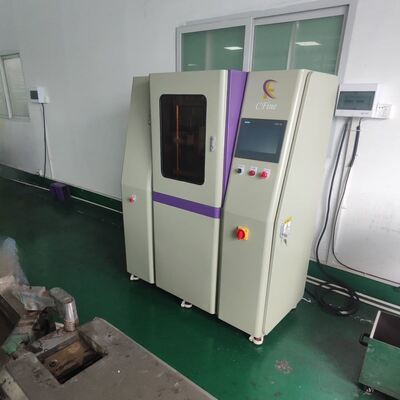

PLC Control Plate Vulcanizing Press Machine 30T Capacity 20kw 500×500mm
| MOQ: | 1 set |
| Price: | $13600-$22500 |
| Standard Packaging: | Wooden cases |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
Detail Information
Place of Origin
Guangdong,China
Brand Name
CFine
Certification
CE,ISO 9001
Model Number
CF-500B
Material:
Imported Alloy
Capacity:
30T
WorkingArea:
500mm*500mm
Number Of Floors:
Two Floors
Cooling And Heating Plate:
One For Heating And One For Cooling
Total Power:
20kw
Weight:
1200kg
Custom:
Customer's Requirements
Highlight:
Plate Vulcanizing Press 500×500mm
,20kw Plate Vulcanizing Press Machine
,PLC Control Plate Vulcanizing Press
Product Description
PLC Controlled Plate Vulcanizing Press Machine
30T Capacity | 20kW Power | 500*500mm Working Area
Custom 500*500mm Plate Vulcanizing Machine for Rubber Products
Equipped with a PLC-based touch screen controller and human-machine interface, this unit enables precise adjustment of parameters including pressure, heat, timing, and exhaust frequency. The system provides real-time monitoring of the vulcanization procedure with fully automated operations, delivering streamlined design combined with high efficiency and smart functionality.
Technical Specifications
| Model | CF-300B | CF-400B | CF-500B | Remarks |
|---|---|---|---|---|
| Capacity | 30T | 30T | 30T | Working pressure, working area, number of floors, and cooling/heating plates can be customized |
| Working Area | 300mm * 300mm | 400mm * 400mm | 500mm * 500mm | |
| Number of Floors | Two floors | Two floors | Two floors | |
| Cooling & Heating Plate | One heating, One cooling | One heating, One cooling | One heating, One cooling | |
| Total Power | 11kW | 15kW | 20kW | |
| Weight | 750kg | 950kg | 1200kg |
Product Superiority
Heating Plate
Constructed from imported high-temperature resistant steel with deep carbonization surface treatment and hard chrome plating. Features include fast heat transfer, corrosion resistance, high hardness, and no deformation. Built-in heaters and temperature sensors provide high power output, rapid heating, sensitive temperature measurement, and minimal temperature error range.
Cold Conduction Plate
Aluminum construction with anodized surface treatment for corrosion resistance and rapid heat conduction.
Guide Columns
Four hardened and precisely positioned columns with hydraulic cylinders, supported by a thick steel plate base. Features self-lubricating bronze bearings for smooth, noiseless lifting and lowering. The press is surrounded by heavy steel for operator safety protection, with upper layer steel plates containing inserted thermocouples near the surface.
Operating Principle
Raw materials are placed in the mold where rubber is shaped under rated pressure and temperature. After reaching the melting point over a specified period, the product achieves defined physical properties through the vulcanization process.
Applications
Primarily used in rubber and plastic products, polyolefins, PVC, films, coils, profiles production, polymer blending, pigments, masterbatches, and stabilizers industries. Designed for testing physical property changes and comparisons of raw materials after molding.
- Detection of gel (fish eyes), black spots, and stains in raw materials
- Pressing and sample preparation of raw materials
- Physical property testing and analysis
- Material research and development applications
Ideal for factory quality control of supplier raw materials, product comparisons, and research & development in academic and industrial settings. Provides valuable reference data before mass production.
