400×400mm Flat Vulcanizing Machine Vulcanizing Press Equipment For Rubber Materials
| MOQ: | 1 set |
| Price: | $13900-$20600 |
| Standard Packaging: | Wooden cases |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |

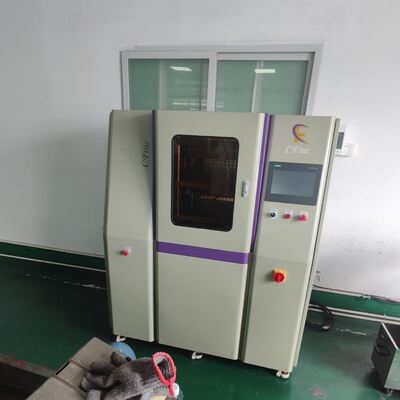

400×400mm Flat Vulcanizing Machine
,Vulcanizing Press Equipment 400×400mm
,Rubber Materials Flat Vulcanizing Machine
This advanced vulcanizing machine features a PLC program color touch screen controller with an intuitive man-machine interface operation system. It enables precise parameter setting for pressure, temperature, time, and exhaust cycles, with real-time display and monitoring of the entire vulcanization process. All operations are automatically completed, featuring a simple structure with intelligent and efficient performance.
| Model | CF-300B | CF-400B | CF-500B | Remarks |
|---|---|---|---|---|
| Capacity | 30T | 30T | 30T | Working pressure, working area, number of floors, and cooling/heating plates can be customized according to customer requirements |
| Working Area | 300mm×300mm | 400mm×400mm | 500mm×500mm | |
| Number of Floors | Two floors | Two floors | Two floors | |
| Cooling and Heating Plate | One for heating One for cooling |
One for heating One for cooling |
One for heating One for cooling |
|
| Total Power | 11kw | 15kw | 20kw | |
| Weight | 750kg | 950kg | 1200kg |
- Heating Plate: Constructed from imported high-temperature resistant steel with deep carbonization and hard chrome plating surface treatment. Features fast heat transfer, corrosion resistance, high hardness, and no deformation. Built-in heaters and temperature sensors provide high power, rapid heating, sensitive temperature measurement, and minimal temperature error range.
- Cold Conduction Plate: Aluminum material with anodized surface treatment for corrosion resistance and rapid heat conduction.
- Guide Columns: Four hardened and precisely positioned columns with hydraulic cylinders supported by a thick steel plate base. Self-lubricating bronze bearings ensure smooth, noiseless lifting and lowering. Heavy steel surrounds the top and rear for enhanced operator safety protection.
Primarily used in rubber and plastic products, polyolefins, PVC, films, coils, profiles production, polymer blending, pigments, masterbatches, and stabilizers industries. Designed to test and compare physical property changes of raw materials after molding, including color dispersion, light transmittance, surface glossiness, detection of black spots, strength, plasticity, and hardness after adding auxiliary materials.
Ideal for factory quality control of supplier raw materials, product comparison analysis, and research and development applications in academic institutions and industrial laboratories. Provides valuable reference data before mass production.
- Detection of gel (fish eyes), black spots, and stains in raw materials
- Pressing and sample preparation of raw materials
- Physical property testing and analysis
- Material research and development projects
