Custom Twin Screw Granulator Machine 4kW 21.7mm Screw Diameter
| MOQ: | 1 set |
| Price: | $15000-$16000 |
| Standard Packaging: | Wooden cases |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
Detail Information
Place of Origin
Guangdong,China
Brand Name
CFine
Certification
CE,ISO 9001
Model Number
CF-20
Gauge Of The Screw Rod:
21.7mm
Draw Ratio:
40:1
Material Of The Screw Element:
W6MO5Cr4V2 High-speed Tool Steel
Material Of The Screw Core Shaft:
40CrNiMoA
Screw Hardness:
HRC62~64
Main Motor Power:
TECO
Main Screw Speed:
60~400rpm
Water-cooling System:
1.2 Meters 304 Stainless Steel Sink
Shearing Machine Power:
1.5kw
Material Of The Barrel:
38CrMoAlA Nitriding Steel
Highlight:
Twin Screw Granulator Machine
,Custom Granulator Machine
,Twin Screw Granulator 4kW
Product Description

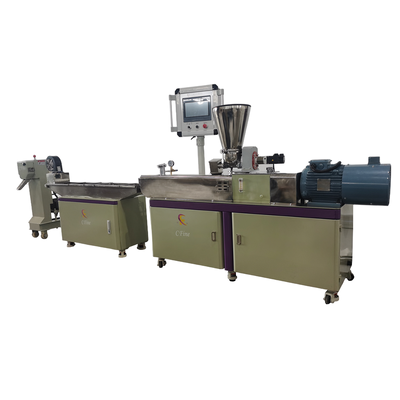

Custom Twin-screw Granulator Machine
Professional-grade twin-screw granulator machine designed for industrial manufacturing applications, offering precision granulation with customizable configurations.
Technical Specifications
| Specification | CF-20 Model | CF-35 Model |
|---|---|---|
| Screw Diameter | 21.7mm | 35mm |
| Draw Ratio | 40:1 | |
| Main Motor | 4kW | 18.5kW / 22kW |
| Reduction Gearbox | Reduction Ratio 2.5:1 | Reduction Ratio 3:1 |
| Maximum Speed | Design: 500 RPM Actual: 385 RPM |
Design: 800 RPM Actual: 480 RPM |
| Cooling Type | Sink Cooling / Conveyor Belt Cooling | |
| Sink Cooling | 1.2 meters of 304 Stainless Steel | 2.5 meters of 304 Stainless Steel |
| Conveyor Belt Cooling | 3-meter Air-cooled Conveyor Belt | 6-meter Air-cooled Conveyor Belt |
After-Sales Service & Support
All non-consumable parts are guaranteed for one year during normal operation. We provide comprehensive on-site installation guidance and long-term technical support to ensure optimal performance.
Note: Electrical components and motors are sourced from premium Taiwan and international brands for enhanced reliability and performance.
