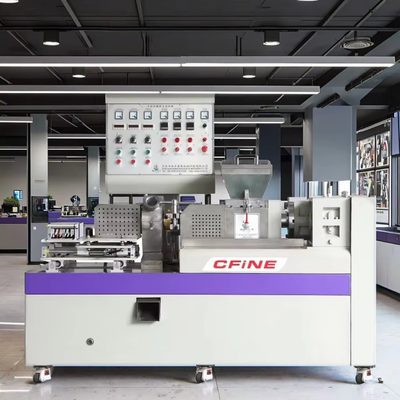

Industrial Atmosphere Protection Granulator 7.5kw With 45mm Screw Diameter
| MOQ: | 1 set |
| Price: | $24200-$25700 |
| Standard Packaging: | Wooden cases |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
Detail Information
Place of Origin
Guangdong,China
Brand Name
CFine
Certification
CE,ISO 9001
Model Number
CF-3L45Z
Each Batch Input:
6~15kG
Screw Diameter:
45mM
Length Duameter Ratio:
16:1
Main Motor:
7.5kW
Material Cooling:
Wind Conveys Cooling
Size:
L3800*W1200*H1800mM
Weight:
About 1500kG
Power:
3∮ AC380V 50HZ
Highlight:
Industrial Atmosphere Protection Granulator
,Atmosphere Protection Granulator 7.5kw
Product Description
Industrial Atmosphere Protection Granulator Machine
Custom CF-3L45Z Atmosphere Protection Granulator with 7.5kW power and 45mm screw diameter
Product Overview
This granulator features forced double-wrist feeding technology that directly processes mixed metal powder agglomerate materials, eliminating the need for additional crushing steps that can affect material granulation quality and prevent contamination during processing.
Technical Specifications
| Model | CF-1L45Z | CF-3L45Z | CF-5L60Z |
|---|---|---|---|
| Mixer Combination | 1L | 3L | 5L |
| Screw Diameter | 45mm | 45mm | 60mm |
| Length Diameter Ratio | 16:1 | ||
| Main Motor | 7.5kW | 7.5kW | 11kW |
| Feed Motor | 0.75kW | 0.75kW | 1.5kW |
| Grinding Motor | 0.75kW | 0.75kW | 0.75kW |
| Material Cooling | Wind Conveys Cooling | ||
| Size | L3800*W1200*H1800mm | L3800*W1200*H1800mm | L4000*W1500*H1800mm |
| Weight | Approx. 1500kg | Approx. 1500kg | Approx. 1600kg |
| Power Supply | 3∮ AC380V 50HZ | ||
Key Features
- Flow meter scale display for precise monitoring
- Integrated oxygen content test table
- Detachable charging hopper for easy rotor cleaning
- Four-sided inflatable protection on feeding barrel
Gearbox System
Designed according to ZBJ19009-88 technical specifications with high-strength alloy steel gears and shafts. Features include GB10095-88 grade 6 gear precision, HRC-60 tooth surface hardness, oversized thrust bearing for screw back thrust, and domestic high-quality bearings and oil seals. The system ensures high load capacity, stable transmission, low noise, and high efficiency.
- Reduction ratio: 10:1
- Hardened tooth surface ground gears for low noise and long life
- Oil-immersed lubrication system
Barrel and Screw Construction
- Material: 38CrMoALA alloy steel with 72-hour nitriding and polishing
- Nitriding depth: 0.6-0.8mm with hardness of 780HV (screw) and 850HV (barrel)
- Screw diameter: Ø45mm
- Screw aspect ratio: 16:1
Electrical Control System
- Power supply: 3-AC380V, 50HZ
- Temperature control: 3-zone digital temperature controller
- Integrated electric control cabinet and host
- Premium components from Taiwan Shilin, Omron, and Tende
After-Sales Service
One-year warranty on non-consumable parts during normal use. We provide on-site installation guidance and long-term technical support. Electrical components and motors feature imported Taiwan and international brands.
