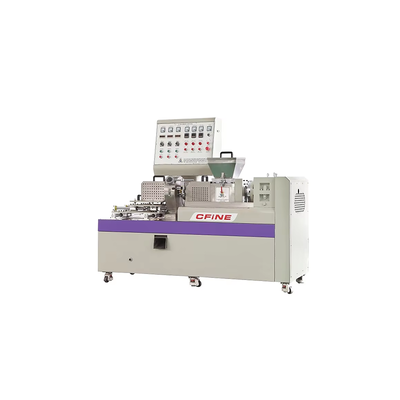

7.5kw 1L Atmosphere Protection Granulator With Flow Meter Scale Display
| MOQ: | 1 set |
| Price: | $24200-$25700 |
| Standard Packaging: | Wooden cases |
| Payment Method: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Detail Information
Place of Origin
Guangdong,China
Brand Name
CFine
Certification
CE,ISO 9001
Model Number
CF-1L45Z
Each Batch Input:
2~5Kg
Screw Diameter:
45Mm
Length Duameter Ratio:
16:1
Main Motor:
7.5Kw
Material Cooling:
Wind Conveys Cooling
Size:
L3800*W1200*H1800Mm
Weight:
About 1500Kg
Power:
3∮ AC380V 50HZ
Each Batch Input:
2~5Kg
Screw Diameter:
45Mm
Length Duameter Ratio:
16:1
Main Motor:
7.5Kw
Material Cooling:
Wind Conveys Cooling
Size:
L3800*W1200*H1800Mm
Weight:
About 1500Kg
Power:
3∮ AC380V 50HZ
Highlight:
1L Atmosphere Protection Granulator
,7.5kw Atmosphere Protection Granulator
Product Description
7.5kw 1L Atmosphere Protection Granulator With Flow Meter Scale Display
Custom CF-1L45Z Atmosphere Protection Granulator
Product Overview
This granulator features forced double-wrist feeding technology that directly processes mixed metal powder agglomerate materials. This innovative design eliminates the traditional additional crushing step that can impact material granulation quality while preventing contamination during the processing phase.
Technical Specifications
| Model | CF-1L45Z | CF-3L45Z | CF-5L60Z |
|---|---|---|---|
| Mixer combination | 1L | 3L | 5L |
| Screw diameter | 45mm | 45mm | 60mm |
| Length Diameter Ratio | 16:1 | ||
| Main Motor | 7.5kw | 7.5kw | 11kw |
| Feed Motor | 0.75kw | 0.75kw | 1.5kw |
| Grinding motor | 0.75kw | 0.75kw | 0.75kw |
| Material cooling | Wind conveys cooling | ||
| Size | L3800*W1200*H1800mm | L3800*W1200*H1800mm | L4000*W1500*H1800mm |
| Weight | About 1500kg | About 1500kg | About 1600kg |
| Power | 3∮ AC380V 50HZ | ||
Key Features
- Flow meter scale display for precise monitoring
- Integrated oxygen content test table
- Detachable charging hopper for easy rotor cleaning
- Four-sided inflatable protection on feeding barrel
Gearbox System
Designed according to ZBJ19009-88 technical specifications. Features high-strength alloy steel gears and shaft components with GB10095-88 grade 6 precision and HRC-60 tooth surface hardness. Equipped with oversized thrust bearing at output shaft end to handle screw back thrust. Utilizes domestic high-quality bearings and oil seals for high load capacity, stable transmission, low noise, and high efficiency.
- Reduction ratio: 10:1
- Hardened tooth surface ground gears for low noise, long life, and reliable operation
- Oil-immersed lubrication system
Barrel and Screw Construction
- Material: 38CrMoALA alloy steel nitrided for 72 hours with polished, wear-resistant surface treatment (specialized for metal powder)
- Nitriding layer depth: 0.6-0.8mm
- Nitriding hardness: screw 780HV, barrel 850HV
- Screw diameter: Ø45mm
- Screw aspect ratio: 16:1
Electrical Control System
- Power supply: 3-AC380V, 50HZ
- Temperature control: 3 zones with digital temperature controller
- Integrated electric control cabinet and host
- Premium electrical components from Taiwan Shilin, Omron, and Tende
After-sales Service & Support
One-year warranty on non-consumable parts during normal use. We provide on-site installation guidance and long-term technical support. Electrical components and motors are imported from Taiwan and international brands.
