Single Screw Double Cone Extrusion Granulator Equipment For Rubber Plastic
| MOQ: | 1 set |
| Price: | $100000-$110000 |
| Standard Packaging: | Wooden cases |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
Detail Information
Place of Origin
Guangdong,China
Brand Name
CFine
Certification
CE,ISO 9001
Model Number
CF-185
Batch Input:
140-160 Kg/h
Screw Diameter:
185mm
Draw Ratio:
12:1
Main Motor:
110kw
Feeding Motor:
15kw
Grinding Motor:
2.2kw
Type Of Cooling:
Water-cooling
Size:
L5600*W1300*H1600mm
Weight:
About 4500KG
Power:
3∮ AC380V 50HZ
Highlight:
Double Cone Extrusion Granulator
,Single Screw Extrusion Granulator
,Rubber Granulator Equipment
Product Description

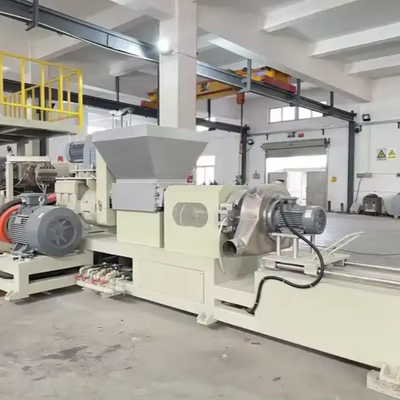

CF-185 Single Screw Double Cone Extrusion Granulator
This custom granulator features forced double-wrist feeding technology that eliminates the need for additional crushing processes, preventing material contamination while maintaining granulation quality for rubber and plastic materials.
Technical Specifications
| Model | CF-85 | CF-100 | CF-120 | CF-150 | CF-165 |
|---|---|---|---|---|---|
| Extruding Capacity (kg/h) | 65-100 | 150-200 | 200-300 | 250-400 | 400-600 |
| Screw Diameter (mm) | 85 | 100 | 120 | 150 | 165 |
| Screw L/D Ratio | 12 | 12 | 12 | 12 | 12 |
| Driving Motor (hp) | 25 | 60 | 75 | 100 | 100 |
| Temperature Control Points | 4 | 4 | 4 | 4 | 4 |
| Twin Rolls Feeding Motor (hp) | 3 | 7.5 | 10 | 15 | 15 |
| Die-Cutting Motor (hp) | 2 | 3 | 3 | 3 | 3 |
| Cooling System (hp) | 3 | 5 | 5 | 7.5 | 7.5 |
| Vibrative Screening Machine (m) | 3 | 3 | 3 | 5 | 3 |
| Suitable Kneader Model | 25L | 35L | 55L | 75L | 110L |
Product Features
This granulation unit is designed for processing PVC, EVA, TPR, rubber, and plastic materials. The system utilizes a main motor, twin rolls feeding mechanism, and die-cutting pelletized system to force mixed materials from the kneader into the single screw, which builds pressure for extrusion and pelletization.
Gearbox Specifications
Designed according to ZBJ19009-88 technical specifications, featuring high-strength alloy steel gears and shaft components. Gear accuracy meets GB10095-88 grade 6 standards with tooth surface hardness of HRC-60. Includes oversized thrust bearing at output shaft end to handle screw back thrust.
- Reduction ratio: 10:1
- Hardened tooth surface ground gears for low noise, long life, and reliable operation
- Oil-immersed lubrication system
Barrel and Screw Construction
- Material: 38CrMoALA alloy steel nitrided for 72 hours with polished, wear-resistant surface treatment
- Nitriding layer depth: 0.6-0.8mm
- Nitriding hardness: screw 780HV, barrel 850HV
- Screw diameter: Ø85mm
- Screw aspect ratio: 12:1
Electrical Control System
- Power supply: 3-AC380V, 50HZ
- 4-zone temperature control with digital temperature controller
- Integrated electric control cabinet and host
- Electrical components from Taiwan Shilin, Omron, and Tende
After-Sales Service
Non-consumable parts guaranteed for one year during normal use. We provide on-site installation guidance and long-term technical support. Electrical components and motors are imported from Taiwan and international brands.
