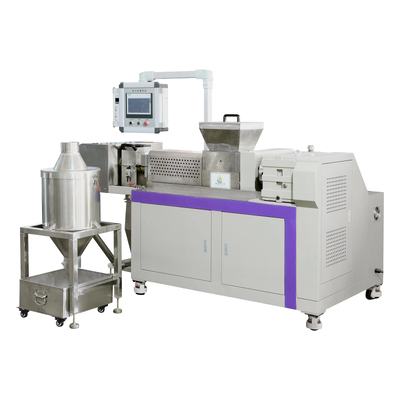

11kw Double Cone Granulator Equipment 60mm Screw High Accuracy 30-60Kg/H
| MOQ: | 1 set |
| Price: | $30000-$35000 |
| Standard Packaging: | Wooden cases |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
Detail Information
Place of Origin
Guangdong,China
Brand Name
CFine
Certification
CE,ISO 9001
Model Number
CF-60
Rotor Type:
Double Wrist
Screw:
60Mm
Length Duameter Ratio:
12:1 [L/D]
Main Motor Power:
11Kw
Twin Rolls Power:
1.5Kw
Capacity:
30-60 Kg/H
Type Of Cooling:
Forced Air Cooling
Application:
Metal Powder,Plastic
Highlight:
Double Cone Granulator 60Kg/H
,11kw Double Cone Granulator
,Granulator Equipment 30Kg/H
Product Description
CF-60 Experimental Double Cone Granulator Machine
This 11kW double cone granulator features a 60mm screw with high accuracy and a production capacity of 30-60 kg/h. The machine utilizes forced double-wrist feeding technology to process mixed metal powder agglomerate materials, eliminating the need for additional crushing processes that can affect material granulation and prevent contamination.
Technical Specifications
| Parameter | Unit | CF-45 | CF-60 |
|---|---|---|---|
| Screw Diameter | mm | 45 | 60 |
| Length Diameter Ratio | L/D | 12:1 | 12:1 |
| Main Motor Power | kW | 5.5 | 11 |
| Twin Rolls Power | kW | 0.75 | 1.5 |
| Capacity | kg/h | 15-25 | 30-60 |
Key Advantages
- Full production granulator functionality with reduced capacity and power consumption
- Ideal for developing new samples and formulas, significantly reducing development costs
- Simple, safe operation with easy cleaning and maintenance
Gearbox Specifications
Designed according to ZBJ19009-88 technical specifications. Features high-strength alloy steel gears and shaft components with GB10095-88 grade 6 precision and HRC-60 tooth surface hardness. Includes oversized thrust bearing at output shaft end to handle screw back thrust. Utilizes domestic high-quality bearings and oil seals for high load capacity, stable transmission, low noise, and high efficiency.
Gearbox Features
- Reduction ratio: 10:1
- Hardened tooth surface ground gears for low noise, long life, and reliable operation
- Oil-immersed lubrication system
Barrel and Screw Construction
- Material: 38CrMoALA alloy steel with 72-hour nitriding and polished surface wear-resistant treatment
- Nitriding depth: 0.6-0.8mm with hardness of 780HV (screw) and 850HV (barrel)
- Screw diameter: Ø60mm
- Screw aspect ratio: 12:1
Electrical Control System
- Power supply: 3-AC380V, 50HZ
- Temperature control: 3-zone digital temperature controller
- Integrated electric control cabinet and host
- Premium components from Taiwan Shilin, Omron, and Tende
After-Sales Service
One-year warranty on non-consumable parts during normal use. Includes on-site installation guidance and long-term technical support. Electrical components and motors feature imported Taiwan and international brands.
