Custom Lab Atmosphere Protection Granulator 5L With 60mm Screw Diameter
| MOQ: | 1 set |
| Price: | $27000-$30000 |
| Standard Packaging: | Wooden cases |
| Payment Method: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Detail Information
Place of Origin
Guangdong,China
Brand Name
CFine
Certification
CE,ISO 9001
Model Number
CF-5L60Z
Each Batch Input:
20~25kG
Screw Diameter:
60mM
Length Duameter Ratio:
16:1
Main Motor:
11kW
Material Cooling:
Wind Conveys Cooling
Size:
L4000*W1500*H1800mM
Weight:
About 1600kG
Power:
3∮ AC380V 50HZ
Each Batch Input:
20~25kG
Screw Diameter:
60mM
Length Duameter Ratio:
16:1
Main Motor:
11kW
Material Cooling:
Wind Conveys Cooling
Size:
L4000*W1500*H1800mM
Weight:
About 1600kG
Power:
3∮ AC380V 50HZ
Highlight:
Lab Atmosphere Protection Granulator
,Atmosphere Protection Granulator 5L
Product Description

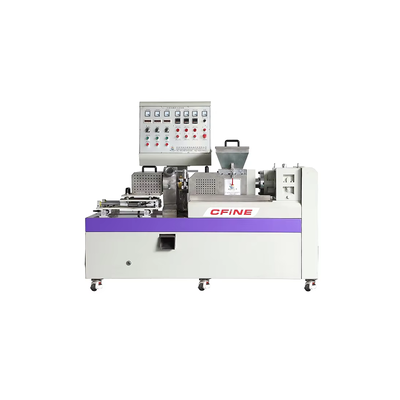

Custom Lab CF-5L60Z Atmosphere Protection Granulator
This granulator features forced double-wrist feeding to efficiently process mixed metal powder agglomerate materials. The innovative design eliminates the need for traditional additional crushing processes that can affect material granulation, while preventing material contamination during processing.
Technical Specifications
| Model | CF-1L45Z | CF-3L45Z | CF-5L60Z |
|---|---|---|---|
| Mixer Combination | 1L | 3L | 5L |
| Screw Diameter | 45mm | 45mm | 60mm |
| Length Diameter Ratio | 16:1 | ||
| Main Motor | 7.5kw | 11kw | 11kw |
| Feed Motor | 0.75kw | 1.5kw | 1.5kw |
| Grinding Motor | 0.75kw | 0.75kw | 0.75kw |
| Material Cooling | Wind Conveys Cooling | ||
| Size | L3800*W1200*H1800mm | L4000*W1500*H1800mm | L4000*W1500*H1800mm |
| Weight | About 1500kg | About 1600kg | About 1600kg |
| Power | 3∮ AC380V 50HZ | ||
Product Features
- Flow meter scale display for precise monitoring
- Oxygen content test table for atmosphere control
- Detachable charging hopper for easy rotor cleaning
- Four-sided inflatable protection on feeding barrel
Gearbox Specifications
Designed according to ZBJ19009-88 technical specifications. Features high-strength alloy steel gears and shaft parts with GB10095-88 grade 6 precision and HRC-60 tooth surface hardness. Includes oversized thrust bearing at output shaft end to handle screw back thrust. Utilizes domestic high-quality bearings and oil seals for high load-bearing capacity, stable transmission, low noise, and high efficiency.
- Reduction ratio: 10:1
- Hardened tooth surface ground gears for low noise, long life, and reliable operation
- Oil-immersed lubrication system
Barrel and Screw Construction
- Material: 38CrMoALA alloy steel nitrided for 72 hours with polished, wear-resistant surface treatment
- Nitriding layer depth: 0.6-0.8mm
- Nitriding hardness: screw 780HV, barrel 850HV
- Screw diameter: Ø60mm
- Screw aspect ratio: 16:1
Electrical Control System
- Power supply: 3-AC380V, 50HZ
- Temperature control: 3 zones with digital temperature controller
- Integrated electric control cabinet and host
- Premium electrical components from Taiwan Shilin, Omron, and Tende
After-Sales Service
One-year warranty on non-consumable parts during normal use. We provide on-site installation guidance and long-term technical support. Electrical components and motors are imported from Taiwan and international brands.
