Double Wrist Feeding Atmosphere Protection Granulator 11KW With Wind Conveys Cooling
| MOQ: | 1 set |
| Price: | $27000-$30000 |
| Standard Packaging: | Wooden cases |
| Payment Method: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Detail Information
Place of Origin
Guangdong,China
Brand Name
CFine
Certification
CE,ISO 9001
Model Number
CF-5L60Z
Each Batch Input:
20~25KG
Screw Diameter:
60MM
Length Duameter Ratio:
16:1
Main Motor:
11KW
Material Cooling:
Wind Conveys Cooling
Size:
L4000*W1500*H1800MM
Weight:
About 1600KG
Power:
3∮ AC380V 50HZ
Each Batch Input:
20~25KG
Screw Diameter:
60MM
Length Duameter Ratio:
16:1
Main Motor:
11KW
Material Cooling:
Wind Conveys Cooling
Size:
L4000*W1500*H1800MM
Weight:
About 1600KG
Power:
3∮ AC380V 50HZ
Highlight:
Double Wrist Atmosphere Protection Granulator
,Atmosphere Protection Granulator 11KW
Product Description

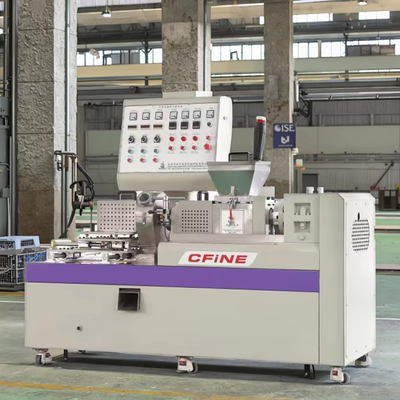

Double Wrist Feeding Atmosphere Protection Granulator 11KW With Wind Conveys Cooling
Custom CF-5L60Z Atmosphere Protection Granulator
This advanced granulator features forced double-wrist feeding technology that efficiently processes mixed metal powder agglomerate materials. The innovative design eliminates the need for additional crushing steps that can compromise material granulation quality, while providing complete protection against material contamination during processing.
Technical Specifications
| Model | CF-1L45Z | CF-3L45Z | CF-5L60Z |
|---|---|---|---|
| Mixer combination | 1L | 3L | 5L |
| Screw diameter | 45mm | 60mm | 60mm |
| Length Diameter Ratio | 16:1 | ||
| Main Motor | 7.5kw | 11kw | 11kw |
| Feed Motor | 0.75kw | 1.5kw | 1.5kw |
| Grinding motor | 0.75kw | 0.75kw | 0.75kw |
| Material cooling | Wind conveys cooling | ||
| Size | L3800*W1200*H1800mm | L4000*W1500*H1800mm | L4000*W1500*H1800mm |
| Weight | About 1500kg | About 1600kg | About 1600kg |
| Power | 3∮ AC380V 50HZ | ||
Key Features
- Flow meter scale display for precise monitoring
- Integrated oxygen content test table
- Detachable charging hopper for easy rotor cleaning
- Four-sided inflatable protection on feeding barrel
Gearbox Specifications
Designed according to ZBJ19009-88 technical specifications, featuring high-strength alloy steel gears and shaft components. Gear accuracy meets GB10095-88, grade 6 standards with tooth surface hardness of HRC-60. Equipped with oversized thrust bearing at output shaft end to handle screw back thrust. Utilizes domestic high-quality bearings and oil seals for superior load-bearing capacity, stable transmission, low noise, and high efficiency.
- Reduction ratio: 10:1
- Hardened tooth surface ground gears for low noise, long life, and reliable operation
- Oil-immersed lubrication system
Barrel and Screw Construction
- Material: 38CrMoALA alloy steel nitrided for 72 hours, polished with surface wear-resistant treatment (specialized for metal powder)
- Nitriding layer depth: 0.6-0.8mm
- Nitriding hardness: screw 780HV, barrel 850HV
- Screw diameter: Ø45mm
- Screw aspect ratio: 16:1
Electrical Control System
- Power supply: 3-AC380V, 50HZ
- Temperature control: 3 zones with digital temperature controller
- Integrated electric control cabinet and host
- Premium electrical components from Taiwan Shilin, Omron, and Tende
After-sales Service & Support
During normal operation, non-consumable parts are guaranteed for one year. We provide comprehensive on-site installation guidance and long-term technical support. Electrical components and motors utilize imported Taiwan and international brands for superior reliability.
