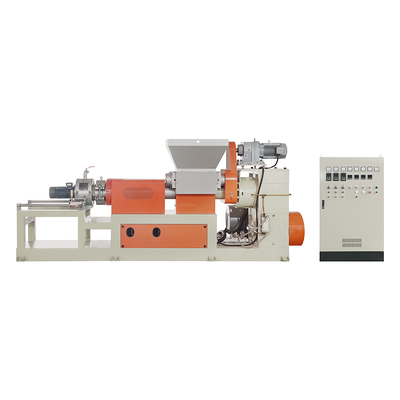

Single Screw Industrial Extrusion Granulator 250 - 400Kg/H Plastic Granulation Unit
| MOQ: | 1 set |
| Price: | $66000-$70000 |
| Standard Packaging: | Wooden cases |
| Payment Method: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Detail Information
Place of Origin
Guangdong,China
Brand Name
CFine
Certification
CE,ISO 9001
Model Number
CF-150
Extruding Capacity:
250-400 Kg/h
Screw Diameter:
150mm
Screw L/D Ratio:
12 L/D
Driving Motor:
100hp
Temperature Control(Points):
4
Twin Rolls Feeding Motor:
15hp
Die-Cutting Motor:
3hp
Cooling System:
7.5hp
Vibrative Screening Machine:
5m
Suitable Kneader:
75L Model
Extruding Capacity:
250-400 Kg/h
Screw Diameter:
150mm
Screw L/D Ratio:
12 L/D
Driving Motor:
100hp
Temperature Control(Points):
4
Twin Rolls Feeding Motor:
15hp
Die-Cutting Motor:
3hp
Cooling System:
7.5hp
Vibrative Screening Machine:
5m
Suitable Kneader:
75L Model
Highlight:
Extrusion Granulator 250Kg/H
,Industrial Extrusion Granulator
,Plastic Granulation Unit
Product Description
Custom CF-150 Single Screw Double Cone Extrusion Granulator
This industrial granulator features forced double-wrist feeding technology that eliminates the need for additional crushing processes. This innovative design prevents material contamination while maintaining efficient granulation performance.
Technical Specifications
| Parameter | CF-85 | CF-100 | CF-120 | CF-150 | CF-165 |
|---|---|---|---|---|---|
| Extruding Capacity (kg/h) | 65-100 | 150-200 | 200-300 | 250-400 | 400-600 |
| Screw Diameter (mm) | 85 | 100 | 120 | 150 | 165 |
| Screw L/D Ratio | 12 | 12 | 12 | 12 | 12 |
| Driving Motor (hp) | 25 | 60 | 75 | 100 | 100 |
| Temperature Control Points | 4 | 4 | 4 | 4 | 4 |
| Twin Rolls Feeding Motor (hp) | 3 | 7.5 | 10 | 15 | 15 |
| Die-Cutting Motor (hp) | 2 | 3 | 3 | 3 | 3 |
| Cooling System (hp) | 3 | 5 | 5 | 7.5 | 7.5 |
| Vibrative Screening Machine (m) | 3 | 3 | 3 | 5 | 3 |
| Suitable Kneader Model | 25L | 35L | 55L | 75L | 110L |
Product Features
This granulation unit is engineered for processing PVC, EVA, TPR, rubber, and plastic materials. The system utilizes main motor power, twin rolls feeding, and die-cutting pelletized technology to force mixed materials from the kneader into the single screw, which builds pressure for efficient extrusion and pelletizing.
Gearbox Specifications
Designed according to ZBJ19009-88 technical specifications, this gearbox features high-strength alloy steel gears and shaft components. Gear accuracy meets GB10095-88 grade 6 standards with tooth surface hardness of HRC-60. An oversized thrust bearing at the output shaft end handles screw back thrust.
- Reduction ratio: 10:1
- Hardened tooth surface ground gears for low noise, long life, and reliable operation
- Oil-immersed lubrication system
Barrel and Screw Construction
- Material: 38CrMoALA alloy steel nitrided for 72 hours with polished, wear-resistant surface treatment
- Nitriding layer depth: 0.6-0.8mm
- Nitriding hardness: screw 780HV, barrel 850HV
- Screw diameter: Ø150mm
- Screw aspect ratio: 12:1
Electrical Control System
- Power supply: 3-AC380V, 50HZ
- 4-zone digital temperature control
- Integrated electric control cabinet and host
- Premium components from Taiwan Shilin, Omron, and Tende
After-Sales Service
Non-consumable parts are guaranteed for one year during normal use. We provide comprehensive on-site installation guidance and long-term technical support. Electrical components and motors feature imported Taiwan and international brands for superior reliability.
