165mm Screw Double Roller Extrusion Granulator Single Screw Granulation Equipment
| MOQ: | 1 set |
| Price: | $62000-$80000 |
| Standard Packaging: | Wooden cases |
| Payment Method: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Detail Information
Place of Origin
Guangdong,China
Brand Name
CFine
Certification
CE,ISO 9001
Model Number
CF-165
Extruding Capacity:
400-600 Kg/h
Screw Diameter:
165mm
Screw L/D Ratio:
12 L/D
Driving Motor:
100hp
Temperature Control(Points):
4
Twin Rolls Feeding Motor:
15hp
Die-Cutting Motor:
3hp
Cooling System:
7.5hp
Vibrative Screening Machine:
3m
Suitable Kneader:
110L Model
Extruding Capacity:
400-600 Kg/h
Screw Diameter:
165mm
Screw L/D Ratio:
12 L/D
Driving Motor:
100hp
Temperature Control(Points):
4
Twin Rolls Feeding Motor:
15hp
Die-Cutting Motor:
3hp
Cooling System:
7.5hp
Vibrative Screening Machine:
3m
Suitable Kneader:
110L Model
Highlight:
165mm Screw Extrusion Granulator
,Single Screw Granulation Equipment
,Extrusion Granulation Equipment
Product Description

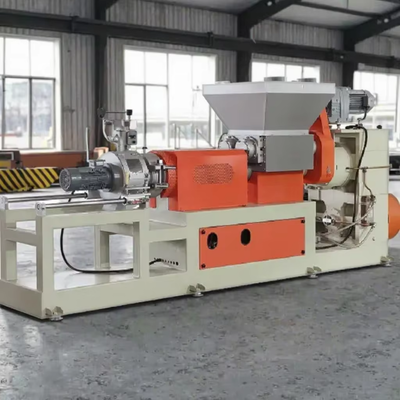

CF-165 Single Screw Double Roller Extrusion Granulator
Custom CF-165 Single Screw Double Wrist Extrusion Granulator
This granulator adopts forced double-wrist feeding to force feed mixed mass materials, eliminating the traditional additional crushing process that affects material granulation while preventing material contamination during processing.
Technical Specifications
| Model | CF-85 | CF-100 | CF-120 | CF-150 | CF-165 |
|---|---|---|---|---|---|
| Extruding Capacity (kg/h) | 65-100 | 150-200 | 200-300 | 250-400 | 400-600 |
| Screw Diameter (mm) | 85 | 100 | 120 | 150 | 165 |
| Screw L/D Ratio | 12 | 12 | 12 | 12 | 12 |
| Driving Motor (hp) | 25 | 60 | 75 | 100 | 100 |
| Temperature Control Points | 4 | 4 | 4 | 4 | 4 |
| Twin Rolls Feeding Motor (hp) | 3 | 7.5 | 10 | 15 | 15 |
| Die-Cutting Motor (hp) | 2 | 3 | 3 | 3 | 3 |
| Cooling System (hp) | 3 | 5 | 5 | 7.5 | 7.5 |
| Vibrative Screening Machine (m) | 3 | 3 | 3 | 5 | 3 |
| Suitable Kneader Model | 25L | 35L | 55L | 75L | 110L |
Product Features
This granulation unit is designed for processing PVC, EVA, TPR, rubber, and plastic raw materials. Through the main motor, twin rolls feeding, and die-cutting pelletized system, mixed material from the kneader is forced into the single screw, which builds up pressure to extrude and pelletize the material efficiently.
Gearbox Specifications
The gearbox design complies with ZBJ19009-88 technical specifications. Gears and shaft components are manufactured from high-strength alloy steel with GB10095-88 grade 6 precision and HRC-60 tooth surface hardness.
- Reduction ratio: 10:1
- Hardened tooth surface ground gears for low noise, long life, and reliable operation
- Oil-immersed lubrication system
- Oversized thrust bearing at output shaft end to handle screw back thrust
- High-quality domestic bearings and oil seals
Barrel and Screw Construction
- Material: 38CrMoALA alloy steel nitrided for 72 hours with polished, wear-resistant surface treatment
- Nitriding layer depth: 0.6-0.8mm
- Nitriding hardness: screw 780HV, barrel 850HV
- Screw diameter: Ø165mm
- Screw aspect ratio: 12:1
Electrical Control System
- Power supply: 3-AC380V, 50HZ
- 4-zone digital temperature control
- Integrated electric control cabinet and host
- Premium components from Taiwan Shilin, Omron, and Tende
After-Sales Service
Non-consumable parts are guaranteed for one year during normal use. We provide on-site installation guidance and long-term technical support. Electrical components and motors feature imported Taiwan and international brands.
