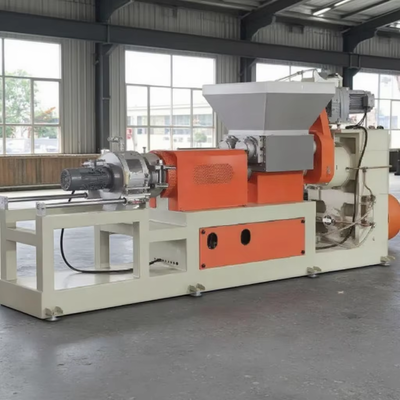

Twin Rolls Feeding Motor Extrusion Granulation Unit 250 - 400kg/H
| MOQ: | 1 set |
| Price: | $54300-$68000 |
| Standard Packaging: | Wooden cases |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
Detail Information
Place of Origin
Guangdong,China
Brand Name
CFine
Certification
CE,ISO 9001
Model Number
CF-150
Extruding Capacity:
250-400 Kg/h
Screw Diameter:
150mm
Screw L/D Ratio:
12 L/D
Driving Motor:
100hp
Temperature Control(Points):
4
Twin Rolls Feeding Motor:
15hp
Die-Cutting Motor:
3hp
Cooling System:
7.5hp
Vibrative Screening Machine:
5m
Suitable Kneader:
75L Model
Highlight:
Granulation Unit 400kg/H
,Extrusion Granulation Unit
Product Description
Twin Rolls Feeding Motor Extrusion Granulator Granulation Unit 250-400kg/H
Custom CF-150 Single Screw Double Wrist Extrusion Granulator
This granulator features forced double-wrist feeding technology that efficiently processes mixed mass materials. The innovative design eliminates the need for traditional additional crushing steps that can compromise material granulation quality, while preventing contamination during the processing cycle.
Technical Specifications
| Model | CF-85 | CF-100 | CF-120 | CF-150 | CF-165 |
|---|---|---|---|---|---|
| Extruding Capacity (kg/h) | 65-100 | 150-200 | 200-300 | 250-400 | 400-600 |
| Screw Diameter (mm) | 85 | 100 | 120 | 150 | 165 |
| Screw L/D Ratio | 12 | 12 | 12 | 12 | 12 |
| Driving Motor (hp) | 25 | 60 | 75 | 100 | 100 |
| Temperature Control Points | 4 | 4 | 4 | 4 | 4 |
| Twin Rolls Feeding Motor (hp) | 3 | 7.5 | 10 | 15 | 15 |
| Die-Cutting Motor (hp) | 2 | 3 | 3 | 3 | 3 |
| Cooling System (hp) | 3 | 5 | 5 | 7.5 | 7.5 |
| Vibrative Screening Machine (m) | 3 | 3 | 3 | 5 | 3 |
| Suitable Kneader Model | 25L | 35L | 55L | 75L | 110L |
Product Features
This granulation unit is specifically designed for processing PVC, EVA, TPR, rubber, and plastic raw materials. The system integrates main motor power, twin rolls feeding mechanism, and die-cutting pelletized technology to force mixed materials from the kneader into the single screw, where pressure builds for efficient extrusion and pelletizing.
Gearbox Specifications
- Designed to ZBJ19009-88 technical specifications
- Gears and shaft components manufactured from high-strength alloy steel
- Gear precision: GB10095-88, grade 6 with tooth surface hardness HRC-60
- Oversized thrust bearing at output shaft end to handle screw back thrust
- Premium domestic bearings and oil seals for reliable performance
- High load-bearing capacity with stable transmission, low noise, and high efficiency
- Reduction ratio: 10:1
- Hardened tooth surface ground gears for quiet operation and extended service life
- Oil-immersed lubrication system
Barrel and Screw Construction
- Material: 38CrMoALA alloy steel with 72-hour nitriding treatment and polishing
- Surface wear-resistant treatment with nitriding layer depth: 0.6-0.8mm
- Nitriding hardness: screw 780HV, barrel 850HV
- Screw diameter: Ø85mm
- Screw aspect ratio: 12:1
Electrical Control System
- Power supply: 3-AC380V, 50HZ
- 4-zone temperature control with digital temperature controllers
- Integrated electric control cabinet and host unit
- Premium electrical components from Taiwan Shilin, Omron, and Tende
After-Sales Service & Support
Non-consumable parts are guaranteed for one year during normal operation. We provide comprehensive on-site installation guidance and long-term technical support to ensure optimal performance.
Note: Electrical components and motors are imported from Taiwan and international brands.
