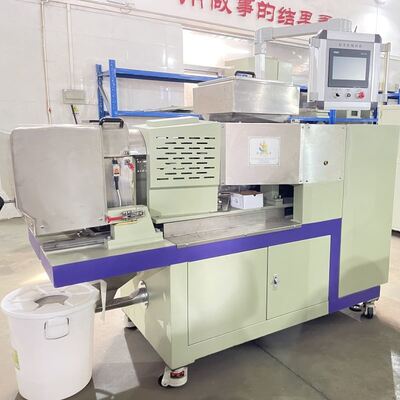

Industrial Double Wrist Rotor Granulator 30 - 60kg/H Metal Granulating Machine
| MOQ: | 1 set |
| Price: | $20400-$30000 |
| Standard Packaging: | Wooden cases |
| Payment Method: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Detail Information
Place of Origin
Guangdong,China
Brand Name
CFine
Certification
CE,ISO 9001
Model Number
CF-60
Rotor Type:
Double Wrist
Screw:
60mm
Length Duameter Ratio:
12:1 L/D
Main Motor Power:
11kw
Twin Rolls Power:
1.5kw
Capacity:
30-60 Kg/h
Type Of Cooling:
Forced Air Cooling
Application:
Metal Powder,Plastic
Rotor Type:
Double Wrist
Screw:
60mm
Length Duameter Ratio:
12:1 L/D
Main Motor Power:
11kw
Twin Rolls Power:
1.5kw
Capacity:
30-60 Kg/h
Type Of Cooling:
Forced Air Cooling
Application:
Metal Powder,Plastic
Highlight:
Double Wrist Rotor Granulator
,Rotor Granulator 30kg/H
,60kg/H Metal Granulating Machine
Product Description
30-60kg/H Industrial Double Wrist Rotor Granulator For Metal Powder
Custom CF-60 Experimental Double Wrist Granulator For Metal
Product Overview
This granulator features forced double-wrist feeding technology that directly processes mixed metal powder agglomerate materials. This innovative design eliminates the traditional additional crushing step that can compromise material granulation quality while preventing contamination during processing.
Technical Specifications
| Parameter | Unit | CF-45 | CF-60 |
|---|---|---|---|
| Screw Diameter | mm | 45 | 60 |
| Length Diameter Ratio | L/D | 12:1 | 12:1 |
| Main Motor Power | kw | 5.5 | 11 |
| Twin Rolls Power | kw | 0.75 | 1.5 |
| Capacity | kg/h | 15-25 | 30-60 |
Key Advantages
- Maintains full production granulator functionality with reduced capacity and lower power consumption
- Ideal for developing new samples and formulations, significantly reducing development costs
- Simple, safe operation with easy cleaning and maintenance procedures
Gearbox System
Designed according to ZBJ19009-88 technical specifications, featuring high-strength alloy steel gears and shaft components. Gear precision meets GB10095-88 Grade 6 standards with tooth surface hardness of HRC-60. An oversized thrust bearing at the output shaft end handles screw back thrust. Utilizes domestic high-quality bearings and oil seals for superior load capacity, stable transmission, low noise, and high efficiency.
- Reduction ratio: 10:1
- Hardened tooth surface ground gears for quiet operation, long lifespan, and reliable performance
- Oil-immersed lubrication system
Barrel and Screw Construction
- Material: 38CrMoALA alloy steel with 72-hour nitriding process, polished surface with wear-resistant treatment (specialized for metal powder)
- Nitriding layer depth: 0.6-0.8mm, hardness: screw 780HV, barrel 850HV
- Screw diameter: Ø45mm
- Screw aspect ratio: 12:1
Electrical Control System
- Power supply: 3-AC380V, 50HZ
- Temperature control: 3-zone digital temperature controller
- Integrated electric control cabinet and host design
- Premium electrical components from Taiwan Shilin, Omron, and Tende
After-Sales Service & Support
Non-consumable parts guaranteed for one year during normal operation. We provide on-site installation guidance and long-term technical support. Electrical components and motors feature imported Taiwan and international brands for enhanced reliability.
