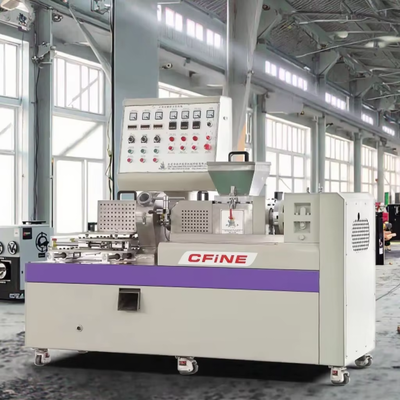

Atmosphere Protection Granulator Machine Electrical Control Dual Wrist Metal Granulator 3L
| MOQ: | 1 set |
| Price: | $24200-$25700 |
| Standard Packaging: | Wooden cases |
| Payment Method: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Detail Information
Place of Origin
Guangdong,China
Brand Name
CFine
Certification
CE,ISO 9001
Model Number
CF-3L45Z
Each Batch Input:
6~15kg
Screw Diameter:
45mm
Length Duameter Ratio:
16:1
Main Motor:
7.5kw
Material Cooling:
Wind Conveys Cooling
Size:
L3800*W1200*H1800mm
Weight:
About 1500kg
Power:
3∮ AC380V 50HZ
Each Batch Input:
6~15kg
Screw Diameter:
45mm
Length Duameter Ratio:
16:1
Main Motor:
7.5kw
Material Cooling:
Wind Conveys Cooling
Size:
L3800*W1200*H1800mm
Weight:
About 1500kg
Power:
3∮ AC380V 50HZ
Highlight:
Granulator Machine Electrical Control
,Granulator Machine Dual Wrist
,Metal Granulator 3L
Product Description
Dual Wrist Feeding Atmosphere Protection Granulator Electrical Control For Metal
Custom CF-3L45Z Atmosphere Protection Granulator For Metal
This granulator features forced double-wrist feeding technology that efficiently processes mixed metal powder agglomerate materials. The innovative design eliminates the need for traditional additional crushing processes that can impact material granulation quality, while preventing material contamination during processing.
Technical Specifications
| Model | CF-1L45Z | CF-3L45Z | CF-5L60Z |
|---|---|---|---|
| Mixer Combination | 1L | 3L | 5L |
| Screw Diameter | 45mm | 45mm | 60mm |
| Length Diameter Ratio | 16:1 | ||
| Main Motor | 7.5kw | 11kw | 11kw |
| Feed Motor | 0.75kw | 1.5kw | 1.5kw |
| Grinding Motor | 0.75kw | 0.75kw | 0.75kw |
| Material Cooling | Wind Conveys Cooling | ||
| Size | L3800*W1200*H1800mm | L4000*W1500*H1800mm | L4000*W1500*H1800mm |
| Weight | About 1500kg | About 1600kg | About 1600kg |
| Power | 3∮ AC380V 50HZ | ||
Product Features
- Flow meter scale display for precise monitoring
- Integrated oxygen content testing capability
- Detachable charging hopper design for easy rotor cleaning
- Four-sided inflatable protection on feeding barrel
Gearbox Specifications
Designed according to ZBJ19009-88 technical specifications, featuring high-strength alloy steel gears and shaft components. Gear precision meets GB10095-88 Grade 6 standards with tooth surface hardness of HRC-60. Equipped with oversized thrust bearing at output shaft end to handle screw back thrust. Utilizes domestic high-quality bearings and oil seals for superior load-bearing capacity, stable transmission, low noise operation, and high efficiency.
- Reduction Ratio: 10:1
- Hardened tooth surface ground gears for low noise, long life, and reliable operation
- Oil-immersed lubrication system
Barrel and Screw Construction
- Material: 38CrMoALA alloy steel with 72-hour nitriding treatment, polished surface with wear-resistant coating (specialized for metal powder)
- Nitriding Layer Depth: 0.6-0.8mm
- Nitriding Hardness: Screw 780HV, Barrel 850HV
- Screw Diameter: Ø45mm
- Screw Aspect Ratio: 16:1
Electrical Control System
- Power Supply: 3-AC380V, 50HZ
- Temperature Control: 3 zones with digital temperature controller
- Integrated electric control cabinet and host design
- Premium electrical components from Taiwan Shilin, Omron, and Tende
After-Sales Service
One-year warranty on non-consumable parts during normal operation. We provide on-site installation guidance and long-term technical support. Electrical components and motors are sourced from Taiwan and international premium brands.
