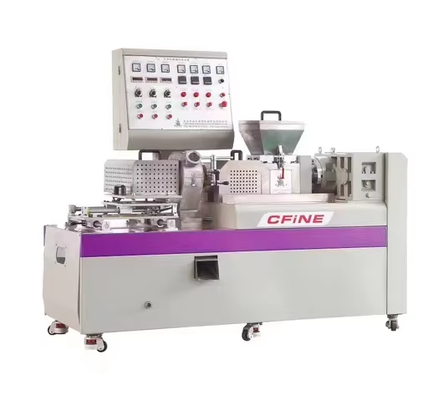

Industrial Metal Atmosphere Protection Granulator 7.5KW CF-1L45Z
| MOQ: | 1 set |
| Price: | $24200-$25700 |
| Standard Packaging: | Wooden cases |
| Payment Method: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Detail Information
Place of Origin
Guangdong,China
Brand Name
CFine
Certification
CE,ISO 9001
Model Number
CF-1L45Z
Each Batch Input:
2~5KG
Screw Diameter:
45MM
Length Duameter Ratio:
16:1
Main Motor:
7.5KW
Material Cooling:
Wind Conveys Cooling
Size:
L3800*W1200*H1800mm
Weight:
About 1500kg
Power:
3∮ AC380V 50HZ
Each Batch Input:
2~5KG
Screw Diameter:
45MM
Length Duameter Ratio:
16:1
Main Motor:
7.5KW
Material Cooling:
Wind Conveys Cooling
Size:
L3800*W1200*H1800mm
Weight:
About 1500kg
Power:
3∮ AC380V 50HZ
Highlight:
Metal Atmosphere Protection Granulator
,Atmosphere Protection Granulator
,Metal Granulator 7.5KW
Product Description
CF-1L45Z Industrial Atmosphere Protection Granulator For Metal
Custom CF-1L45Z Atmosphere Protection Granulator designed specifically for metal powder processing applications.
Product Overview
This granulator features forced double-wrist feeding technology that eliminates the need for additional crushing processes, improving material granulation efficiency while preventing contamination during processing.
Technical Specifications
| Model | CF-1L45Z | CF-3L45Z | CF-5L60Z |
|---|---|---|---|
| Mixer combination | 1L | 3L | 5L |
| Screw diameter | 45mm | 45mm | 60mm |
| Length Diameter Ratio | 16:1 | ||
| Main Motor | 7.5kw | 11kw | 11kw |
| Feed Motor | 0.75kw | 0.75kw | 1.5kw |
| Grinding motor | 0.75kw | 0.75kw | 0.75kw |
| Material cooling | Wind conveys cooling | ||
| Size | L3800*W1200*H1800mm | L4000*W1500*H1800mm | L4000*W1500*H1800mm |
| Weight | About 1500kg | About 1600kg | About 1600kg |
| Power | 3∮ AC380V 50HZ | ||
Key Features
- Flow meter scale display for precise monitoring
- Oxygen content test table for quality control
- Detachable charging hopper for easy rotor cleaning
- Four-sided inflatable protection on feeding barrel
Gearbox Specifications
Designed according to ZBJ19009-88 technical specifications. Features high-strength alloy steel gears and shafts with GB10095-88 grade 6 precision and HRC-60 surface hardness. Equipped with oversized thrust bearing at output shaft end to handle screw back thrust. Utilizes domestic high-quality bearings and oil seals for high load capacity, stable transmission, low noise, and high efficiency.
- Reduction ratio: 10:1
- Hardened tooth surface ground gears for low noise and long life
- Oil-immersed lubrication system
Barrel and Screw Construction
- Material: 38CrMoALA alloy steel with 72-hour nitriding treatment
- Nitriding depth: 0.6-0.8mm
- Nitriding hardness: Screw 780HV, Barrel 850HV
- Screw diameter: Ø45mm
- Screw aspect ratio: 16:1
Electrical Control System
- Power supply: 3-AC380V, 50HZ
- Temperature control: 3 zones with digital temperature controller
- Integrated electric control cabinet and host
- Premium components from Taiwan Shilin, Omron, and Tende
After-Sales Service
One-year warranty on non-consumable parts during normal use. Includes on-site installation guidance and long-term technical support.
Note: Electrical components and motors are imported from Taiwan and foreign brands.
