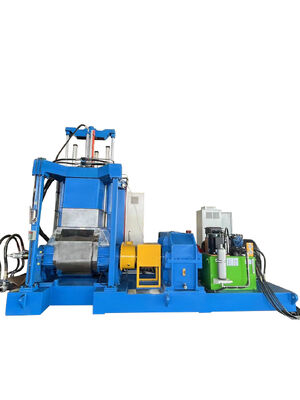

75KW 55L Rubber Mixing Machine Wear Resistant Banbury Machine Rubber Mixer
| MOQ: | 1 set |
| Price: | $33500-$36000 |
| Standard Packaging: | Wooden cases |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
Detail Information
Place of Origin
Guangdong,China
Brand Name
CFine
Certification
CE,ISO 9001
Model Number
CF-55L
Total Capacity:
125(L)
Working Capacity Of Mixing:
55(L)
Driving Motor Power:
75KW
Pressurized Cylinder:
￠320×740MM
Air Pressure:
5-8KG/CM2
Type Of Cooling:
Water-cooling
Net Weight:
About 7200KG
Product Size:
L3420*W2140*H2800MM
Highlight:
55L Rubber Mixing Machine
,Rubber Mixing Machine Wear Resistant
,75KW Banbury Machine Rubber Mixer
Product Description
75KW 55L Internal Mixer For Rubber, Banbury Machine Rubber Mixer Wear Resistance
Custom CF-55L Production Internal Mixer For Rubber
The 55L internal mixer is engineered for efficient mixing, kneading, and dispersing of various chemical materials including EVA, rubber, synthetic rubber, and hot melt adhesives. This essential equipment enables the development of experimental formulations that can be seamlessly scaled to production lines. Built with exceptional durability and wear resistance, the mixer ensures uniform blending and consistent material property modification, delivering optimal and repeatable mixing results.
Technical Specifications
| Model | CF-25L | CF-35L | CF-55L | CF-75L | CF-110L | CF-150L |
|---|---|---|---|---|---|---|
| Total Volume of Mixing Chamber (L) | 45 | 75 | 125 | 180 | 250 | 380 |
| Working Capacity of Mixing (L) | 25 | 35 | 55 | 75 | 110 | 150 |
| Driving Motor Power (kw) | 37 | 55 | 75 | 110 | 160 | 220 |
| Tilting Angle (°) | 110 | 110 | 110 | 110 | 110 | 110 |
| Rotational Speed of Rotor (front/rear) (r/min) | 38/32 | 38/32 | 38/32 | 38/32 | 38/32 | 38/32 |
| Air Compression Pressure (MPa) | ≥0.6-0.8 | ≥0.6-0.8 | ≥0.6-0.8 | ≥0.6-0.8 | ≥0.6-0.8 | ≥0.6-0.8 |
| Net Weight (kg) | 4000 | 6300 | 7500 | 10300 | 14200 | 18000 |
| Product Size (mm) | 2750*1750*2750 | 2900*2000*3000 | 3450*2300*3400 | 3600*2300*3900 | 3800*2550*3900 | 4700*3350*4000 |
Working Principle
The two rotors in the mixing chamber rotate relative to each other at a specific speed ratio, clamping material from the feeding port and directing it through the roller gap where it undergoes squeezing and shearing by the rotors. After passing through the roller gap, the material impacts the sharp edge of the "W"-shaped mixing chamber and divides into two parts, returning to the top of the rotor along the gaps between the front/rear chamber walls and rotors. Within the closed mixing chamber, materials experience strong shearing and mixing under controlled pressure and temperature conditions, ensuring complete dispersion and plasticization of formula materials for optimal performance.
Product Features
- Elliptic shear rotor design with wear-resistant surfacing hard alloy coating on rotor surfaces and chromate plating on mixer chamber interior for enhanced abrasion and corrosion resistance, extending service life
- Circulation channel structure enables heat conduction medium circulation for rotors, mixer chamber, and top peg, accommodating steam, oil, electric heater, or cooling water for precise temperature control
- Advanced sealing system for reliable operation
- Cylinder-powered top peg applies pressure to materials, forcing uniform kneading to increase productivity
- Electric control system utilizes renowned Chinese brands with manual or automatic operation modes for easy switching and reliable performance
Technical Advantages
A. Changfeng's anti-leakage powder device employs mechanical shaft seal tightening technology with self-lubricating seal rings that maintain compressed sealing during mixing. This design reduces mixing system wear and effectively minimizes noise issues caused by leakage and poor sealing.
B. The mixing chamber interior features a complex tube belt design with excellent heat exchange and precise temperature control. Water-cooled rotors prevent material sticking, ensure accurate temperature management, and promote uniform material dispersion.
After-Sales Service
Non-consumable parts are guaranteed for one year during normal use. We provide on-site installation guidance and long-term technical support.
Note: Electrical components and motors are imported from Taiwan and international brands.
