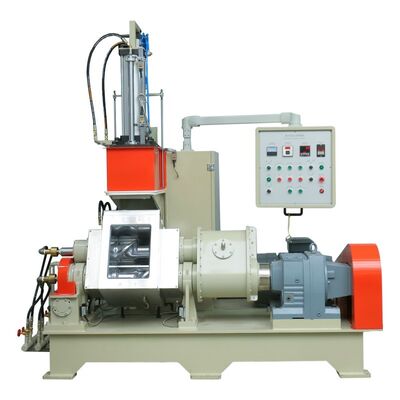

Custom 110Liters Capacity Banbury Internal Mixer Machine For Rubber
| MOQ: | 1 set |
| Price: | $56600-$62000 |
| Standard Packaging: | Wooden cases |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
Detail Information
Place of Origin
Guangdong,China
Brand Name
CFine
Certification
CE,ISO 9001
Model Number
CF-110L
Total Capacity:
250(L)
Working Capacity Of Mixing:
110(L)
Driving Motor Power:
160KW
Pressurized Cylinder:
￠420
Type Of Cooling:
Water-cooling
Net Weight:
About 14000KG
Product Size:
L4400*W2760*H3770MM
Mode Of Heating:
Auxiliary Electric Heating
Highlight:
110Liters Banbury Internal Mixer
,Rubber Internal Mixer Machine
Product Description
Custom 110Liters Capacity Banbury Internal Mixer Machine For Rubber
Custom CF-110L Low Price Production Internal Mixer
The 110L internal mixer is engineered for efficient mixing, kneading, and dispersion of various chemical materials including EVA, rubber, synthetic rubber, and hot melt adhesives. This essential equipment enables experimental formulation development that seamlessly transitions to production lines. Built with exceptional durability and wear resistance, the mixer guarantees uniform blending and consistent material property modification, delivering optimal and repeatable mixing performance.
Technical Specifications
| Model | CF-25L | CF-35L | CF-55L | CF-75L | CF-110L | CF-150L |
|---|---|---|---|---|---|---|
| Total Volume of Mixing Chamber (L) | 45 | 75 | 125 | 180 | 250 | 380 |
| Working Capacity of Mixing (L) | 25 | 35 | 55 | 75 | 110 | 150 |
| Driving Motor Power (kw) | 37 | 55 | 75 | 110 | 160 | 220 |
| Tilting Angle (°) | 110 | 110 | 110 | 110 | 110 | 110 |
| Rotational Speed of Rotor (front/rear) (r/min) | 38/32 | 38/32 | 38/32 | 38/32 | 38/32 | 38/32 |
| Air Compression Pressure (MPa) | ≥0.6-0.8 | ≥0.6-0.8 | ≥0.6-0.8 | ≥0.6-0.8 | ≥0.6-0.8 | ≥0.6-0.8 |
| Net Weight (kg) | 4000 | 6300 | 7500 | 10300 | 14200 | 18000 |
| Product Size (mm) | 2750*1750*2750 | 2900*2000*3000 | 3450*2300*3400 | 3600*2300*3900 | 3800*2550*3900 | 4700*3350*4000 |
Working Principle
Inside the mixing chamber, two rotors rotate relative to each other at a defined speed ratio, drawing material through the feed port into the nip area between rotors. The material undergoes intense squeezing and shearing forces as it passes through the rotor gap. Upon striking the sharp "W"-shaped edge of the mixing chamber, the material splits into two streams that flow along clearances between chamber walls and rotors, cycling back to the rotor top. Within the sealed chamber, materials are thoroughly sheared and blended under controlled pressure and temperature conditions, ensuring complete dispersion and plasticization of formulation ingredients for maximum compound performance and consistency.
Product Features
- Elliptic shear rotor design with wear-resistant surfacing hard alloy coating; chromate-plated mixing chamber interior for enhanced abrasion and corrosion resistance, extending service life
- Circulation channel structure enables heat conduction medium circulation for rotor, mixing chamber, and top peg; accommodates steam, oil, electric heater, or cooling water for precise temperature control
- Advanced sealing system for optimal performance
- Cylinder-powered top peg applies pressure to materials, forcing uniform kneading to increase productivity; electric control system utilizes renowned Chinese brands with manual/automatic operation modes for reliable performance
Technical Advantages
A. Advanced Anti-Leakage System: Changfeng's mechanical shaft seal tightening technology utilizes self-lubricating seal rings that maintain compression and sealing during mixing. This reduces mixing system wear and effectively minimizes noise issues caused by leakage and poor sealing.
B. Precision Temperature Control: The mixing chamber features a complex tube belt design with excellent heat exchange capabilities for precise temperature control. Water-cooled rotor system prevents material sticking, ensures accurate temperature management, and promotes uniform material dispersion.
After-Sales Service
Non-consumable parts are guaranteed for one year during normal use. We provide on-site installation guidance and long-term technical support to ensure optimal machine performance.
Note: Electrical components and motors are imported from Taiwan and international brands for superior reliability and performance.
