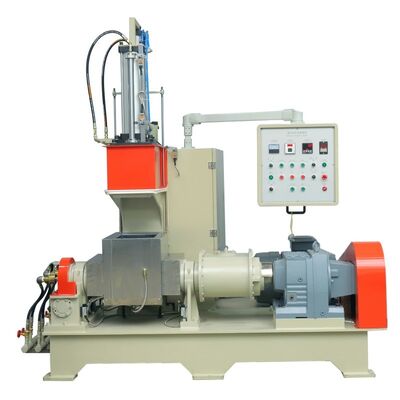

75L 110KW Banbury Internal Mixer For Rubber Mixing Kneading And Dispersing
| MOQ: | 1 set |
| Price: | $44600-$50000 |
| Standard Packaging: | Wooden cases |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
Detail Information
Place of Origin
Guangdong,China
Brand Name
CFine
Certification
CE,ISO 9001
Model Number
CF-75L
Total Capacity:
180(L)
Working Capacity Of Mixing:
75(L)
Driving Motor Power:
110KW
Pressurized Cylinder:
￠350
Type Of Cooling:
Water-cooling
Net Weight:
About 9200KG
Product Size:
L3770*W2140*H3180MM
Power Supply:
3∮ AC380V 50HZ
Highlight:
110KW Banbury Internal Mixer
,75L Banbury Internal Mixer
,75L Internal Rubber Mixer
Product Description
75L 110KW Banbury Internal Mixer for Rubber Mixing, Kneading and Dispersing
Custom CF-75L Production Internal Mixer for Rubber
The 75L internal mixer is engineered for efficient mixing, kneading, and dispersing of various chemical materials including EVA, rubber, synthetic rubber, and hot melt adhesives. This essential equipment enables the development of experimental formulations that can be seamlessly scaled to production lines. Built for durability and wear resistance, the mixer ensures uniform blending and consistent material property modification, delivering optimal and repeatable mixing results.
Technical Specifications
| Model | CF-25L | CF-35L | CF-55L | CF-75L | CF-110L | CF-150L |
|---|---|---|---|---|---|---|
| Total Volume of Mixing Chamber (L) | 45 | 75 | 125 | 180 | 250 | 380 |
| Working Capacity of Mixing (L) | 25 | 35 | 55 | 75 | 110 | 150 |
| Driving Motor Power (kW) | 37 | 55 | 75 | 110 | 160 | 220 |
| Tilting Angle (°) | 110 | 110 | 110 | 110 | 110 | 110 |
| Rotational Speed of Rotor (front/rear) (r/min) | 38/32 | 38/32 | 38/32 | 38/32 | 38/32 | 38/32 |
| Air Compression Pressure (MPa) | ≥0.6-0.8 | ≥0.6-0.8 | ≥0.6-0.8 | ≥0.6-0.8 | ≥0.6-0.8 | ≥0.6-0.8 |
| Net Weight (kg) | 4000 | 6300 | 7500 | 10300 | 14200 | 18000 |
| Product Size (mm) | 2750*1750*2750 | 2900*2000*3000 | 3450*2300*3400 | 3600*2300*3900 | 3800*2550*3900 | 4700*3350*4000 |
Working Principle
Inside the mixing chamber, two rotors rotate relative to each other at a defined speed ratio, drawing material through the feed port into the nip area between the rotors. The material undergoes intense squeezing and shearing forces as it passes through the rotor gap. Upon striking the sharp "W"-shaped edge of the mixing chamber, the material splits into two streams that flow along the clearances between the chamber walls and rotors, cycling back to the top of the rotor. Within the sealed chamber, materials are thoroughly sheared and blended under controlled pressure and temperature conditions, ensuring complete dispersion and plasticization of formulation ingredients for maximum performance and consistency.
Product Features
- Elliptic shear rotor design with wear-resistant surfacing hard alloy coating and chromate-plated mixing chamber interior for enhanced abrasion and corrosion resistance
- Circulation channel structure enables heat conduction medium circulation for rotor, mixing chamber, and top peg with steam, oil, electric heater, or cooling water options
- Advanced sealing system for optimal performance
- Cylinder-operated top peg applies pressure to materials for uniform kneading and increased productivity
- Electric control system featuring renowned Chinese brands with manual or automatic operation modes
Technical Advantages
A. Advanced Anti-Leakage System: Changfeng's mechanical shaft seal tightening technology utilizes self-lubricating seal rings that maintain compression and sealing during mixing, reducing system wear and minimizing noise from leakage.
B. Precision Temperature Control: Complex tube belt design within the mixing chamber provides excellent heat exchange and precise temperature control. Water-cooled rotor system prevents material sticking and ensures uniform dispersion.
After-Sales Service
Non-consumable parts are guaranteed for one year during normal use. We provide on-site installation guidance and long-term technical support.
Note: Electrical components and motors are imported from Taiwan and international brands.
