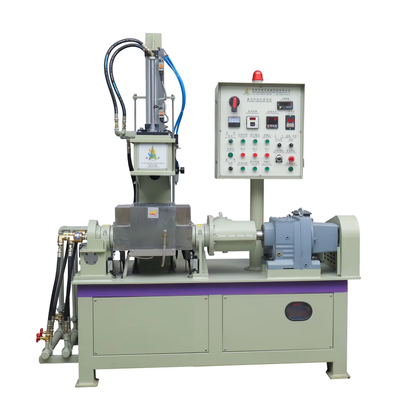

Industrial 10L Wear Resistant Metal Powder Kneader For Stirring Dispersing And Mixing
| MOQ: | 1 set |
| Price: | $37400-$42000 |
| Standard Packaging: | Wooden cases |
| Payment Method: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Detail Information
Place of Origin
Guangdong,China
Brand Name
CFine
Certification
CE,ISO 9001
Model Number
CF-10L
Capacity:
10L
Driving Motor Power:
18.5kw
Tilting Motor Power:
1.5kw
Speed Of The Protor(Front/Rear):
0-40/31 R/min
Air Compression Pressure:
0.5-0.8 Mpa
Net Weight:
2500kg
Highlight:
Wear Resistant Metal Powder Kneader
,10L Metal Powder Kneader
Product Description
Industrial 10L Wear Resistant Metal Powder Kneader
Custom 10L high-quality wear-resistant metal powder kneader designed for stirring, dispersing, and mixing applications in industrial settings.
Product Overview
This mixer features tungsten carbide ultra-wear-resistant and pollution-free coating on all material-contact components including mixing chamber, side plate, pressure hammer, and mixing blade shaft. It is specifically engineered for stirring, dispersing, and mixing metal powders with binders and other formulations at controlled temperatures. When materials form into a mud mass, they are discharged after processing and proceed to the next manufacturing stage. Ideal for small-batch production, prototyping, laboratory research, and educational applications.
Technical Specifications
| Model | CF-1L | CF-2L | CF-3L | CF-5L | CF-10L | CF-15L |
|---|---|---|---|---|---|---|
| Capacity (L) | 1 | 2 | 3 | 5 | 10 | 15 |
| Driving Motor Power (kW) | 4 | 5.5 | 7.5 | 11 | 18.5 | 22 |
| Tilting Motor Power (kW) | 0.75 | 0.75 | 0.75 | 0.75 | 1.5 | 1.5 |
| Speed of Rotor (Front/Rear) (r/min) | 40/31 | 40/31 | 40/31 | 40/31 | 40/31 | 40/31 |
| Air Compression Pressure (MPa) | 0.5-0.8 | 0.5-0.8 | 0.5-0.8 | 0.5-0.8 | 0.5-0.8 | 0.5-0.8 |
| Net Weight (kg) | 800 | 1000 | 1100 | 1500 | 2500 | 2600 |
Product Advantages
- Advanced powder leak-proof design for easy maintenance and component replacement
- Enhanced heating and cooling system with faster warming and superior cooling performance
- Utility model patents for ceramic and metal industry applications with ultra-wear-resistant alloy coating on material-contact surfaces, significantly extending service life
Operating Principle
The dual rotors within the mixing chamber rotate at specific speed ratios, capturing material from the feeding port and directing it through the roller gap where it undergoes compression and shearing. After passing through the gap, material impacts the sharp edge of the "W"-shaped mixing chamber, dividing into two streams that flow along the front and rear chamber walls before returning to the rotor top. Within this enclosed environment, materials experience intense shearing and mixing under controlled pressure and temperature, ensuring complete dispersion and plasticization for optimal formulation performance.
Mixing System
The "W"-shaped mixing chamber incorporates an "M"-shaped lower pressure cover to create a fully enclosed mixing space. Prismatic spiral stirring blades eliminate dead angles, meeting stringent shearing and dispersion requirements. Constructed from hollow high-carbon steel, all material-contact components undergo vacuum deep nitriding heat treatment for 72 hours, followed by tungsten carbide coating and surface smoothing. This results in exceptional wear resistance, corrosion resistance, non-stick properties, and extended operational lifespan.
Technical Advantages
- Mechanical shaft seal tightening technology with self-lubricating seal rings maintains compression during mixing, reducing system wear and preventing leakage-related noise
- Through-type heating system provides 50% greater efficiency than traditional heating plates with faster, more uniform temperature distribution
- Optional PLC program control system available based on customer requirements
- Complex tube belt design in mixing chamber ensures excellent heat exchange and precise temperature control
- Water-cooled rotor system prevents material sticking, maintains accurate temperature control, and ensures uniform material dispersion
After-Sales Service
One-year warranty on non-consumable parts during normal operation. We provide on-site installation guidance and long-term technical support to ensure optimal performance.
Note: Electrical components and motors are sourced from premium Taiwan and international brands.
