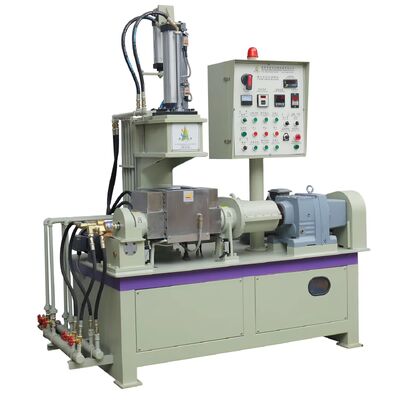

Custom Wearproof Metal Powder Dispersion Kneader Machine 1L Capacity Leak Proof Design
| MOQ: | 1 set |
| Price: | $16500-$20000 |
| Standard Packaging: | Wooden cases |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
Detail Information
Place of Origin
Guangdong,China
Brand Name
CFine
Certification
CE,ISO 9001
Model Number
CF-1L
Capacity:
1L
Driving Motor Power:
4kw
Tilting Motor Power:
0.75kw
Speed Of The Protor(Front/Rear):
40/31 R/min
Air Compression Pressure:
0.5-0.8 Mpa
Net Weight:
800kg
Highlight:
Kneader Machine 1L
,Metal Powder Dispersion Kneader
,Wearproof Dispersion Kneader
Product Description
Custom Wearproof Metal Powder Kneader Machine
This 1L capacity kneader machine features a leak-proof design with tungsten carbide coating on all material-contact surfaces, providing exceptional wear resistance and contamination-free operation.
Product Overview
The mixing chamber, side plates, pressure hammer, and mixing blade shaft are coated with ultra-wear-resistant tungsten carbide, making this equipment ideal for stirring, dispersing, and mixing metal powders with binders at controlled temperatures. Once materials form a mud mass, they are discharged for subsequent processing. Perfect for small-batch production, prototyping, laboratories, and educational applications.
Technical Specifications
| Model | CF-1L | CF-2L | CF-3L | CF-5L | CF-10L | CF-15L |
|---|---|---|---|---|---|---|
| Capacity (L) | 1 | 2 | 3 | 5 | 10 | 15 |
| Driving Motor Power (kW) | 4 | 5.5 | 7.5 | 11 | 18.5 | 22 |
| Tilting Motor Power (kW) | 0.75 | 0.75 | 0.75 | 0.75 | 1.5 | 1.5 |
| Rotor Speed (Front/Rear) (r/min) | 40/31 | 40/31 | 40/31 | 40/31 | 40/31 | 40/31 |
| Air Compression Pressure (MPa) | 0.5-0.8 | 0.5-0.8 | 0.5-0.8 | 0.5-0.8 | 0.5-0.8 | 0.5-0.8 |
| Net Weight (kg) | 800 | 1000 | 1100 | 1500 | 2500 | 2600 |
Key Features
- Advanced powder leak-proof design for easy maintenance and component replacement
- Enhanced heating and cooling system with faster warming and superior cooling performance
- Utility model patents for ceramic and metal industry applications with ultra-wear-resistant alloy coating on material-contact surfaces
Operating Principle
Dual rotors rotate at specific speed ratios within the mixing chamber, capturing material from the feed port and directing it through the roller gap where it undergoes compression and shearing. After passing through the gap, material impacts the "W" shaped chamber edge, splitting into two streams that circulate along the front/rear chamber walls and rotor interfaces. This closed-system process ensures thorough shearing, mixing, dispersion, and plasticization under controlled pressure and temperature conditions.
Mixing System
The "W" shaped mixing chamber combines with an "M" shaped lower pressure cover to create a fully enclosed mixing environment. Prismatic spiral stirring blades eliminate dead angles, ensuring complete material shearing and dispersion. Hollow blade construction with high-carbon steel components undergoes 72-hour vacuum nitriding and tungsten carbide coating for exceptional wear resistance, corrosion resistance, non-stick properties, and extended service life.
Technical Advantages
- Mechanical shaft seal tightening technology with self-lubricating seal rings maintains compression during operation, reducing wear and noise
- Through-type heating system provides 50% greater efficiency than traditional heating plates with uniform temperature distribution
- Optional PLC program control system available
- Complex tube belt design in mixing chamber ensures optimal heat exchange and precise temperature control
- Water-cooled rotor system prevents material sticking and ensures even dispersion
After-Sales Service
One-year warranty on non-consumable parts during normal operation. We provide on-site installation guidance and long-term technical support. Electrical components and motors feature imported Taiwan and international brand components.
