1L Capacity Powder Kneading Equipment For Ceramic And Metal Industry
| MOQ: | 1 set |
| Price: | $16500-$20000 |
| Standard Packaging: | Wooden cases |
| Payment Method: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Detail Information
Place of Origin
Guangdong,China
Brand Name
CFine
Certification
CE,ISO 9001
Model Number
CF-1L
Capacity:
1L
Driving Motor Power:
4KW
Tilting Motor Power:
0.75KW
Speed Of The Protor(Front/Rear):
40/31 R/m
Air Compression Pressure:
0.5-0.8 Mpa
Net Weight:
800KG
Highlight:
1L Capacity Powder Kneading Equipment
,Metal Industry Powder Kneading Equipment
,Ceramic Industry Powder Kneading Equipment
Product Description

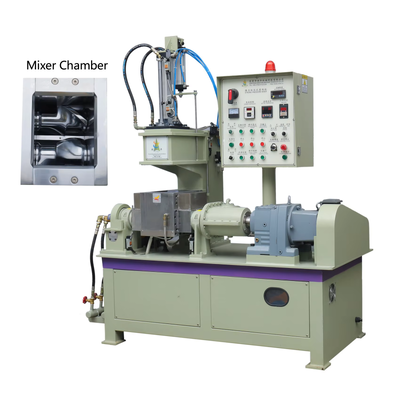

1L Capacity Powder Kneading Equipment For Ceramic And Metal Industry
Custom 1L Low Price Wearproof Metal Powder Kneader
This mixer features components that contact materials (mixing chamber, side plate, pressure hammer, mixing blade shaft) coated with tungsten carbide ultra-wear-resistant, pollution-free coating. It is designed for stirring, dispersing, and mixing metal powders with binders and other formulations at controlled temperatures. When materials form a mud mass, they are discharged for subsequent processing. Ideal for small-batch production, proofing, laboratories, and educational applications.
Technical Specifications
| Model | CF-1L | CF-2L | CF-3L | CF-5L | CF-10L | CF-15L |
|---|---|---|---|---|---|---|
| Capacity (L) | 1 | 2 | 3 | 5 | 10 | 15 |
| Driving Motor Power (kW) | 4 | 5.5 | 7.5 | 11 | 18.5 | 22 |
| Tilting Motor Power (kW) | 0.75 | 0.75 | 0.75 | 0.75 | 1.5 | 1.5 |
| Speed of the Rotor (Front/Rear) (r/min) | 40/31 | 40/31 | 40/31 | 40/31 | 40/31 | 40/31 |
| Air Compression Pressure (MPa) | 0.5-0.8 | 0.5-0.8 | 0.5-0.8 | 0.5-0.8 | 0.5-0.8 | 0.5-0.8 |
| Net Weight (kg) | 800 | 1000 | 1100 | 1500 | 2500 | 2600 |
Product Advantages
- Advanced powder leak-proof design for easy maintenance and component replacement
- Enhanced heating and cooling system with faster warming and superior cooling performance
- Utility model patents with ultra-wear-resistant alloy coating on material contact surfaces, significantly extending equipment lifespan for ceramic and metal industry applications
Operating Principle
The dual rotors within the mixing chamber rotate at specific speed ratios, capturing material from the feeding port and directing it through the roller gap where it undergoes compression and shearing. After passing through the gap, material impacts the sharp edge of the "W" shaped mixing chamber, splitting into two streams that flow along the front/rear chamber walls and rotor gaps before returning to the rotor top. Within this enclosed environment under controlled pressure and temperature, materials experience intensive shearing and mixing, ensuring complete dispersion and plasticization for optimal formulation performance.
Mixing System
The "W" shaped mixing chamber combines with an "M" shaped lower pressure cover to create a fully enclosed mixing space. Prismatic spiral stirring blades eliminate dead angles, meeting physical property requirements for material shearing and dispersion. Hollow blade construction features high-carbon steel components (mixing chamber, side plate, pressure hammer, stirring blade shaft) that undergo precision tempering, deep nitriding heat treatment for 72 hours in vacuum, and tungsten carbide surface spraying. This results in wear-resistant, corrosion-resistant surfaces that resist material adhesion and ensure extended service life.
Technical Advantages
- Changfeng's mechanical shaft seal tightening technology with self-lubricating seal rings maintains compression during mixing, reducing system wear and minimizing noise from leakage
- Through-type heating system provides faster, more uniform temperature transfer with 50% higher efficiency than traditional heating plates, with optional PLC program control
- Complex tube belt design in mixing chamber ensures excellent heat exchange and precise temperature control, while water-cooled rotors prevent material sticking and enhance dispersion uniformity
After-sales Service
Non-consumable parts are guaranteed for one year during normal operation. We provide on-site installation guidance and long-term technical support. Electrical components and motors are sourced from Taiwan and international brands.
