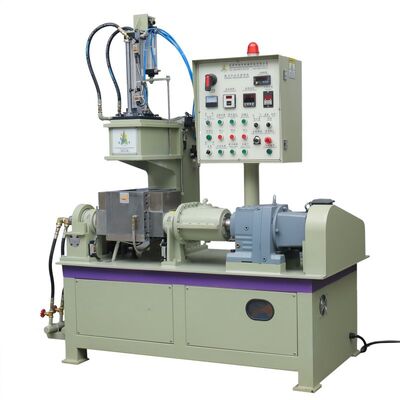

Two Rotors Metal Powder Kneader Mixer Machine 3L Kneading Equipment
| MOQ: | 1 set |
| Price: | $22300-$25000 |
| Standard Packaging: | Wooden cases |
| Payment Method: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Detail Information
Place of Origin
Guangdong,China
Brand Name
CFine
Certification
CE,ISO 9001
Model Number
CF-3L
Capacity:
3L
Driving Motor Power:
7.5kw
Tilting Motor Power:
0.75kw
Speed Of The Protor(Front/Rear):
40/31 R/min
Air Compression Pressure:
0.5-0.8 Mpa
Net Weight:
1100kg
Highlight:
Two Rotors Metal Powder Kneader
,3L Powder Kneader Mixer
,Metal Powder Kneading Equipment
Product Description
Two Rotors Metal Powder Kneader Mixer Machine 3L Kneading Equipment
Custom 3L High Quality Wearproof Metal Powder Kneader
Product Overview
This mixer features tungsten carbide ultra-wear-resistant and pollution-free coating on all material-contact components including mixing chamber, side plate, pressure hammer, and mixing blade shaft. It is designed for stirring, dispersing, and mixing metal powders with binders and other formulations at controlled temperatures. When materials form into a mud mass, they are discharged for subsequent processing. Ideal for small-batch production, prototyping, laboratory research, and educational applications.
Technical Specifications
| Model | CF-1L | CF-2L | CF-3L | CF-5L | CF-10L | CF-15L |
|---|---|---|---|---|---|---|
| Capacity (L) | 1 | 2 | 3 | 5 | 10 | 15 |
| Driving Motor Power (kw) | 4 | 5.5 | 7.5 | 11 | 18.5 | 22 |
| Tilting Motor Power (kw) | 0.75 | 0.75 | 0.75 | 0.75 | 1.5 | 1.5 |
| Speed of Rotor (Front/Rear) (r/min) | 40/31 | 40/31 | 40/31 | 40/31 | 40/31 | 40/31 |
| Air Compression Pressure (MPa) | 0.5-0.8 | 0.5-0.8 | 0.5-0.8 | 0.5-0.8 | 0.5-0.8 | 0.5-0.8 |
| Net Weight (kg) | 800 | 1000 | 1100 | 1500 | 2500 | 2600 |
Product Advantages
- Advanced powder leak-proof design for easy maintenance and component replacement
- Enhanced heating and cooling system with faster warming and superior cooling performance
- Utility model patents for ceramic and metal industry applications with ultra-wear-resistant alloy coating on material-contact surfaces, significantly extending service life
Operating Principle
The two rotors within the mixing chamber rotate at specific speed ratios, capturing material from the feeding port and directing it through the roller gap where it undergoes compression and shearing. After passing through the gap, material impacts the sharp edge of the "W"-shaped mixing chamber, dividing into two streams that flow along the front/rear chamber walls and rotor interfaces before returning to the rotor top. Within this sealed environment under controlled pressure and temperature, materials experience intensive shearing and mixing, ensuring complete dispersion and plasticization for optimal formulation performance.
Mixing System
The "W"-shaped mixing chamber combines with an "M"-shaped lower pressure cover to create a fully enclosed mixing space. Prismatic spiral stirring blades eliminate dead angles, ensuring thorough material shearing and dispersion to meet physical property requirements. Hollow stirring blades and all material-contact components (mixing chamber, side plate, pressure hammer, stirring blade shaft) are constructed from premium high-carbon steel, precision-tempered and processed. Following 72-hour deep nitriding heat treatment in vacuum, surfaces receive tungsten carbide coating and smoothness treatment for exceptional wear resistance, corrosion resistance, non-stick properties, and extended service life.
Technical Advantages
- Changfeng's mechanical shaft seal tightening technology with self-lubricating seal rings maintains compression sealing during mixing, reducing system wear and minimizing noise from leakage
- Through-type heating system provides faster, more uniform temperature transfer with 50% higher efficiency than traditional heating plates, with optional PLC program control system
- Complex tube belt design in mixing chamber ensures excellent heat exchange and precise temperature control, while water-cooled rotors prevent material sticking and enhance dispersion uniformity
After-Sales Service
One-year warranty on non-consumable parts during normal operation. We provide on-site installation guidance and long-term technical support. Electrical components and motors feature imported brands from Taiwan and international suppliers.
