Custom Energy Saving Farrel Continuous Mixer For Rubber And Plastic Mixing
| MOQ: | 1 set |
| Price: | $70300-$89200 |
| Standard Packaging: | Wooden cases |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
Detail Information
Place of Origin
Guangdong,China
Brand Name
CFine
Certification
CE,ISO 9001
Model Number
CF-85LXS
Nominal Pipe Diameter:
φ85MM
Rotor Max Speed:
500RPM
Main Motor Power:
75Kw
Screw Diameter:
φ120MM
Screw Length To Diameter Ratio:
12
Screw Maximum Speed:
75Rpm
Motor Power:
30Kw
Output(PE+50%CACO3):
About 250KG/h
Highlight:
Energy Saving Farrel Continuous Mixer
,Custom Farrel Continuous Mixer For Rubber
,Rubber Farrel Mixer
Product Description

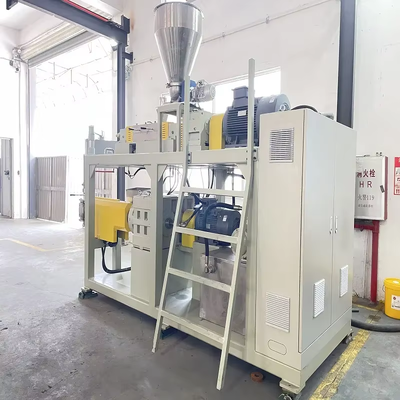

Custom Energy Saving Farrel Continuous Mixer For Rubber And Plastic Mixing
Custom CF-85LXS Low Price Farrel Continuous Mixer For Rubber
Product Overview
This continuous twin-rotor internal mixer delivers exceptional efficiency in processing polymers including rubber, plastic, and thermoplastic elastomers. Designed for nonstop production environments, it provides excellent dispersion and compatibility with high-filler formulations. The system combines the advantages of traditional internal mixing units and extrusion machines, creating a seamless process that encompasses feeding, kneading, plasticizing, and discharging.
Technical Specifications
| Model | CF-50LXS | CF-85LXS | CF-110LXS | CF-135LXS | CF-165LXS |
|---|---|---|---|---|---|
| Nominal pipe diameter | φ50mm | φ85mm | φ110mm | φ135mm | φ165mm |
| Rotor Max Speed | 700rpm | 500rpm | 500rpm | 500rpm | 500rpm |
| Main motor power | 37kW | 75kW | 110kW | 160kW | 315kW |
| Screw diameter | φ75mm | φ120mm | φ135mm | φ165mm | φ200mm |
| Screw length to diameter ratio | 14 | 12 | 10 | 10 | 10 |
| Screw maximum speed | 75rpm | 75rpm | 75rpm | 75rpm | 75rpm |
| Motor power | 11kW | 30kW | 45kW | 55kW | 132kW |
| Speed change | Change by frequency changer | ||||
| Output (PE+50%CaCO3) | About 125 | About 250 | About 550 | About 1000 | About 2000 |
Key Advantages
- Feeding: Continuous feeding system
- Environment: No powder fluttering, maintains clean workshop conditions
- Dimension: Combined machine design with small footprint and low storey height requirements
- Automation: Easy integration with automatic weighing systems
- Product Quality: Continuous operation ensures consistent, high-quality output
- Energy Saving: Steady current consumption without peak loads, delivering efficient energy usage
Applications
Rubber compounds, carbon black masterbatch, calcium powder filling masterbatch, talc powder filling masterbatch, functional masterbatch, high concentration masterbatch, flame retardant masterbatch, cable materials, high filling materials, and various polymer compounds.
