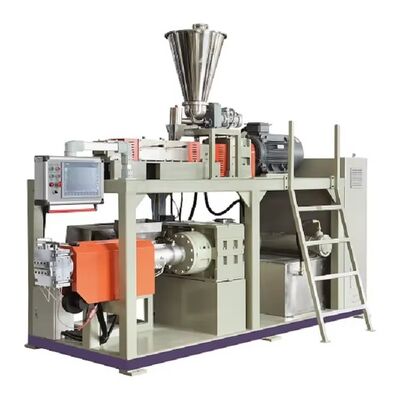

Custom Twin Rotor Farrel Continuous Mixer High Precision Rubber Compound Mixer
| MOQ: | 1 set |
| Price: | $28800-$46000 |
| Standard Packaging: | Wooden cases |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
Detail Information
Place of Origin
Guangdong,China
Brand Name
CFine
Certification
CE,ISO 9001
Model Number
CF-50LXS
Nominal Pipe Diameter:
φ50mm
Rotor Max Speed:
700rpm
Main Motor Power:
37kw
Screw Diameter:
φ75mm
Screw Length To Diameter Ratio:
14
Screw Maximum Speed:
75rpm
Motor Power:
11kw
Output(PE+50%CACO3):
About 125Kg/h
Highlight:
Farrel Continuous Mixer High Precision
,Twin Rotor Farrel Continuous Mixer
,Continuous Rubber Compound Mixer
Product Description
Custom Twin Rotor Farrel Continuous Mixer
High Precision Rubber Compound Mixer
Custom High Precision Dual Rotors Continuous Mixer For Rubber
Product Overview
The twin-rotor continuous internal mixer is highly efficient equipment for mixing and kneading polymer materials including rubber, plastic, and thermoplastic elastomers. This system is particularly suitable for applications requiring continuous production, high uniformity mixing, and high filling systems. The equipment combines the advantages of traditional internal mixers and extrusion equipment, delivering a fully continuous process from material feeding through mixing, plasticizing, and discharging.
Technical Specifications
| Model | CF-50LXS | CF-85LXS | CF-110LXS | CF-135LXS | CF-165LXS |
|---|---|---|---|---|---|
| Nominal pipe diameter | φ50mm | φ85mm | φ110mm | φ135mm | φ165mm |
| Rotor Max Speed | 700rpm | 500rpm | 500rpm | 500rpm | 500rpm |
| Main motor power | 37kw | 75kw | 110kw | 160kw | 315kw |
| Screw diameter | φ75mm | φ120mm | φ135mm | φ165mm | φ200mm |
| Screw length to diameter ratio | 14 | 12 | 10 | 10 | 10 |
| Screw maximum speed | 75rpm | 75rpm | 75rpm | 75rpm | 75rpm |
| Motor power | 11kw | 30kw | 45kw | 55kw | 132kw |
| Speed change | Change by frequency changer | ||||
| Output (PE+50%CACO3) | About 125 | About 250 | About 550 | About 1000 | About 2000 |
Product Advantages
Continuous feeding system for uninterrupted production
No powder fluttering, maintaining clean workshop environment
Compact combined machine design with small footprint and low height requirements
Easy integration with automatic weighing systems
Consistent product quality through continuous operation
Energy efficient with steady current and no significant power peaks during mixing
Applications
Rubber compounds, carbon black masterbatch, calcium powder filling masterbatch, talc powder filling masterbatch, functional masterbatch, high concentration masterbatch, flame retardant masterbatch, cable materials, high filling materials, and various polymer compounding applications.
