315KW Farrel Continuous Mixer Equipment For Mixing Kneading Polymer Mixing Machine
| MOQ: | 1 set |
| Price: | $211500-$235800 |
| Standard Packaging: | Wooden cases |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
Detail Information
Place of Origin
Guangdong,China
Brand Name
CFine
Certification
CE,ISO 9001
Model Number
CF-165LXS
Nominal Pipe Diameter:
φ165mm
Rotor Max Speed:
500rpm
Main Motor Power:
315kw
Screw Diameter:
φ200mm
Screw Length To Diameter Ratio:
10
Screw Maximum Speed:
75rpm
Motor Power:
132kw
Output(PE+50%CACO3):
About 2000Kg/h
Highlight:
Continuous Polymer Mixing Machine
,315KW Farrel Continuous Mixer
,Polymer Materials Farrel Continuous Mixer
Product Description

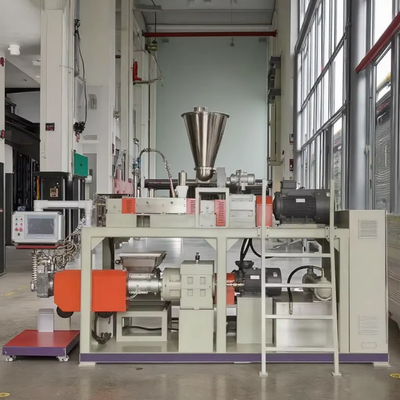

315KW Farrel Continuous Mixer Equipment
Custom CF-165LXS High-efficiency Farrel Continuous Mixer
The twin-rotor continuous internal mixer is a highly efficient equipment for mixing and kneading polymer materials, including rubber, plastic, and thermoplastic elastomers. This system is particularly suitable for applications requiring continuous production, high uniformity mixing, and high filling systems. The equipment combines the advantages of traditional internal mixers and extrusion equipment, delivering a fully continuous process from material feeding through mixing, plasticizing, and discharging.
Technical Specifications
| Model | CF-50LXS | CF-85LXS | CF-110LXS | CF-135LXS | CF-165LXS |
|---|---|---|---|---|---|
| Nominal pipe diameter | φ50mm | φ85mm | φ110mm | φ135mm | φ165mm |
| Rotor Max Speed | 700rpm | 500rpm | 500rpm | 500rpm | 500rpm |
| Main motor power | 37kw | 75kw | 110kw | 160kw | 315kw |
| Screw diameter | φ75mm | φ120mm | φ135mm | φ165mm | φ200mm |
| Screw length to diameter ratio | 14 | 12 | 10 | 10 | 10 |
| Screw maximum speed | 75rpm | 75rpm | 75rpm | 75rpm | 75rpm |
| Motor power | 11kw | 30kw | 45kw | 55kw | 132kw |
| Speed change | Change by frequency changer | ||||
| Output (PE+50%CACO3) | About 125 | About 250 | About 550 | About 1000 | About 2000 |
Product Advantages
- Feeding: Continuous feeding system
- Environment: No powder fluttering, maintaining clean workshop conditions
- Dimension: Combined machine design with small footprint and low storey height requirements
- Automation: Easy integration with automatic weighing systems
- Product Quality: Continuous operation ensures consistent, high-quality output
- Energy Saving: Steady current consumption without peak loads, delivering efficient energy usage
Applications
Rubber processing, carbon black masterbatch, calcium powder filling masterbatch, talc powder filling masterbatch, functional masterbatch, high concentration masterbatch, flame retardant masterbatch, cable material, high filling material, and various polymer compounding applications.
