Twin Rotor Continuous Rubber Farrel Mixer High Precision 50mm Pipe Diameter
| MOQ: | 1 set |
| Price: | $28800-$46000 |
| Standard Packaging: | Wooden cases |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
Detail Information
Place of Origin
Guangdong,China
Brand Name
CFine
Certification
CE,ISO 9001
Model Number
CF-50LXS
Nominal Pipe Diameter:
φ50MM
Rotor Max Speed:
700RPM
Main Motor Power:
37KW
Screw Diameter:
φ75MM
Screw Length To Diameter Ratio:
14
Screw Maximum Speed:
75RPM
Motor Power:
11KW
Output(PE+50%CACO3):
About 125KG/h
Highlight:
Continuous Farrel Mixer
,Farrel Mixer High Precision
,Twin Rotor Farrel Mixer
Product Description

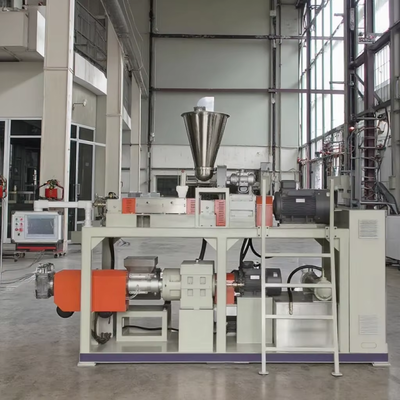

CF-50LXS High Precision Dual Rotors Continuous Mixer For Rubber
The twin-rotor continuous internal mixer is engineered for efficient blending and kneading of polymer materials including rubber, plastics, and thermoplastic elastomers. This equipment is particularly suitable for processes requiring continuous operation, high mixing uniformity, and the capability to handle heavily filled compounds. By integrating the advantages of conventional internal mixers with extrusion systems, it enables a fully continuous workflow from material feeding and mixing through plasticizing to final discharge.
Technical Specifications
| Model | CF-50LXS | CF-85LXS | CF-110LXS | CF-135LXS | CF-165LXS |
|---|---|---|---|---|---|
| Nominal pipe diameter (mm) | φ50 | φ85 | φ110 | φ135 | φ165 |
| Rotor Max Speed (rpm) | 700 | 500 | 500 | 500 | 500 |
| Main motor power (kw) | 37 | 75 | 110 | 160 | 315 |
| Screw diameter (mm) | φ75 | φ120 | φ135 | φ165 | φ200 |
| Screw length to diameter ratio | 14 | 12 | 10 | 10 | 10 |
| Screw maximum speed (rpm) | 75 | 75 | 75 | 75 | 75 |
| Motor power (kw) | 11 | 30 | 45 | 55 | 132 |
| Speed change | Change by frequency changer | ||||
| Output (PE+50%CACO3) | About 125 | About 250 | About 550 | About 1000 | About 2000 |
Key Advantages
- Continuous Feeding: Ensures uninterrupted material supply
- Clean Operation: No powder fluttering, maintaining workshop cleanliness
- Compact Design: Combined machine with small footprint and low height requirements
- Automation Ready: Easy integration with automatic weighing systems
- Consistent Quality: Continuous operation delivers stable, high-quality products
- Energy Efficient: Steady current consumption without peak loads, reducing energy consumption
Applications
Rubber compounds, carbon black masterbatch, calcium powder filling masterbatch, talc powder filling masterbatch, functional masterbatch, high concentration masterbatch, flame retardant masterbatch, cable materials, high filling materials, and various polymer compounding applications.
