PLC Control 5L Extrusion Granulating Machine For Ceramic Powder
| MOQ: | 1 set |
| Price: | $38700-$44000 |
| Standard Packaging: | Wooden cases |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
Detail Information
Place of Origin
Guangdong,China
Brand Name
CFine
Certification
CE,ISO 9001
Model Number
CF-170
Capacity:
5L
Hydraulic Cylinder Specifications:
Φ150×600MM
Maximum Work Pressure:
14MPa
Power Of The Oil Pump Motor:
2.2KW
Total Heating Power:
About 12KW
Maximum Granulation Speed:
50r/min
Size:
L2300*W900*H1450MM
Weight:
About 1500kg
Highlight:
5L Extrusion Granulating Machine
,PLC Control Extrusion Granulating Machine
,Ceramic Powder Granulating Machine
Product Description

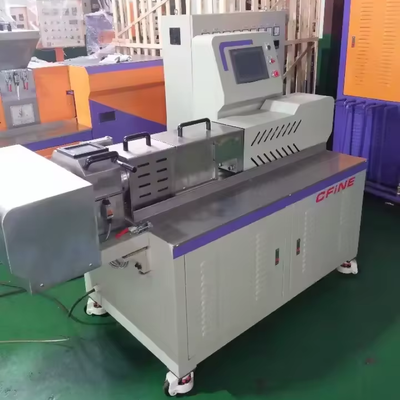

PLC Control 5L Extrusion Granulating Machine For Ceramic Powder
CFine Factory Custom CF-170 Ceramic Extrusion Pelletizer
This advanced granulator is specifically designed for preparing ceramic powder injection molding feedstock. When integrated with a 1L internal mixer, it efficiently completes the granulation stage following raw powder mixing. The system offers both manual and automatic operation modes, with PLC providing precise control over temperature, movement, and other critical functions.
Technical Specifications
| Model | CF-75 | CF-90 | CF-170 |
|---|---|---|---|
| Storage Tank Volume (L) | 1 | 1 | 5 |
| Each Batch of Material Input | 1-3 kg | 2-5 kg | 10-15 kg |
| Injection Cylinder (MM) | Φ75 | Φ90 | Φ170 |
| Oil Hydraulic Cylinder (mm) | Φ40*265 | Φ100*550 | Φ150*600 |
| MAX Pressure (Mpa) | 9 | 14 | 14 |
| MAX Shear Rate | 200r/min | 200r/min | 50r/min |
| Size (mm) | L1200*W600*H1350 | L2030*W830*H1450 | L2300*W900*H1450 |
| Weight (kg) | About 85 | About 1200 | About 1500 |
After-Sales Service & Support
During normal operation, non-consumable parts are guaranteed for one year. We provide comprehensive on-site installation guidance and long-term technical support to ensure optimal performance.
Note: Electrical components and motors are imported from Taiwan and international premium brands for enhanced reliability and performance.
