Precise Control 1L Ceramic Pelletizer Ceramic Powder Extrusion Granulation Machine
| MOQ: | 1 set |
| Price: | $30200-$35000 |
| Standard Packaging: | Wooden cases |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
Detail Information
Place of Origin
Guangdong,China
Brand Name
CFine
Certification
CE,ISO 9001
Model Number
CF-90
Capacity:
1L
Hydraulic Cylinder Specifications:
Φ100×550MM
Maximum Work Pressure:
14MPa
Power Of The Oil Pump Motor:
2.2KW
Total Heating Power:
About 6KW
Maximum Granulation Speed:
200r/m
Size:
L2030*W830*H1450mm
Weight:
About 1200KG
Highlight:
Ceramic Powder Extrusion Granulation Machine
,Ceramic Pelletizer 1L
,Precise Control Ceramic Pelletizer
Product Description

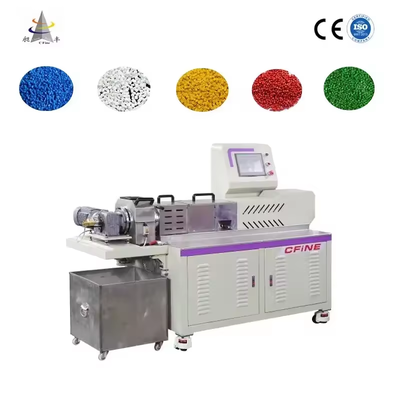

Precise Control 1L Ceramic Pelletizer
Ceramic Powder Extrusion Granulating Machines
CFine Factory Custom CF-90 Ceramic Extrusion Pelletizer
Product Overview
This granulator is specifically engineered for producing granules from ceramic powder injection molding compounds. Designed to work seamlessly with a 1L internal mixer, it performs the granulation process immediately after powder blending. The system offers both manual and automatic operation modes, with PLC control ensuring precise management of temperature, motion, and all programmed parameters.
Technical Specifications
| Model | CF-75 | CF-90 | CF-170 |
|---|---|---|---|
| Storage Tank Volume (L) | 1 | 1 | 5 |
| Each Batch of Material Input | 1-3kg | 2-5kg | 10-15kg |
| Injection Cylinder | Φ75mm | Φ90mm | Φ170mm |
| Oil Hydraulic Cylinder | Φ40*265MM | Φ100*550MM | Φ150*600MM |
| MAX Pressure | 9Mpa | 14Mpa | 14Mpa |
| MAX Shear Rate | 200r/m | 200r/m | 50r/m |
| Size (MM) | L1200*W600*H1350 | L2030*W830*H1450 | L2300*W900*H1450 |
| Weight (KG) | About 85 | About 1200 | About 1500 |
After-sales Service & Support
During normal operation, non-consumable parts are guaranteed for one year. We provide comprehensive on-site installation guidance and long-term technical support to ensure optimal performance.
Note: Electrical components and motors are sourced from premium Taiwan and international brands for enhanced reliability and performance.
