1L Capacity 2.2kw Extrusion Pelletizer Machine For Ceramic Powder
| MOQ: | 1 set |
| Price: | $30200-$35000 |
| Standard Packaging: | Wooden cases |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
Detail Information
Place of Origin
Guangdong,China
Brand Name
CFine
Certification
CE,ISO 9001
Model Number
CF-90
Capacity:
1L
Hydraulic Cylinder Specifications:
Φ100×550mm
Maximum Work Pressure:
14MPa
Power Of The Oil Pump Motor:
2.2kw
Total Heating Power:
About 6kw
Maximum Granulation Speed:
200r/min
Size:
L2030*W830*H1450MM
Weight:
About 1200kg
Highlight:
2.2kw Extrusion Pelletizer
,1L Extrusion Pelletizer
,Ceramic Powder Extrusion Pelletizer
Product Description

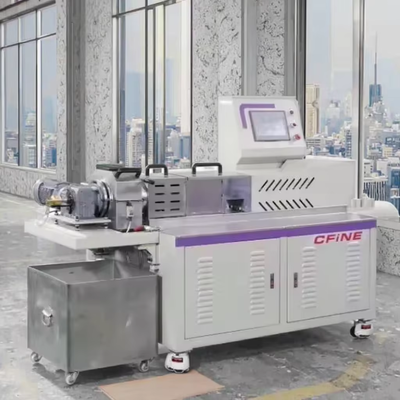

1L Capacity 2.2kw Extrusion Pelletizer Machine For Ceramic Powder
Custom CF-90 Direct Compression Type Ceramic Extrusion Pelletizer
Product Overview
This granulator is specifically designed for processing ceramic powder injection molding materials.
Working in conjunction with a 1L internal mixer, this equipment completes the granulation process
after powder material mixing. The system offers both manual and automatic control options, with
PLC technology providing precise control over temperature, movement, and other program parameters.
Technical Specifications
| Specification | CF-75 | CF-90 | CF-170 |
|---|---|---|---|
| Storage Tank Volume | 1L | 1L | 5L |
| Each Batch of Material Input | 1-3KG | 2-5KG | 10-15KG |
| Injection Cylinder | Φ75MM | Φ90MM | Φ170MM |
| Oil Hydraulic Cylinder | Φ40*265mm | Φ100*550mm | Φ150*600mm |
| MAX Pressure | 9Mpa | 14Mpa | 14Mpa |
| MAX Shear Rate | 200r/min | 200r/min | 50r/min |
| Size | L1200*W600*H1350MM | L2030*W830*H1450MM | L2300*W900*H1450MM |
| Weight | About 85KG | About 1200KG | About 1500KG |
After-Sales Service & Support
- One-year warranty on non-consumable parts during normal use
- On-site installation guidance provided
- Long-term technical support available
Note: Electrical components and motors are imported from Taiwan and foreign brands.
