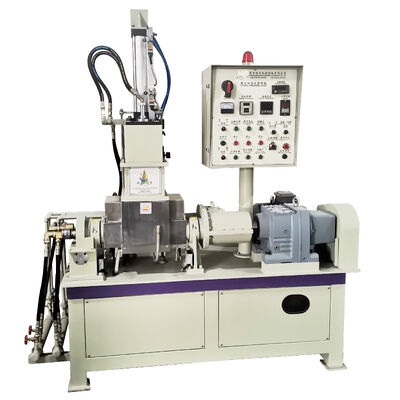

15L Lab Metal Powder Mixing Kneader For Ceramic And Metal Industry
| MOQ: | 1 set |
| Price: | $41500-$45000 |
| Standard Packaging: | Wooden cases |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
Detail Information
Place of Origin
Guangdong,China
Brand Name
CFine
Certification
CE,ISO 9001
Model Number
CF-15L
Capacity:
15L
Driving Motor Power:
22KW
Tilting Motor Power:
1.5kw
Speed Of The Protor(Front/Rear):
0-40/31 R/m
Air Compression Pressure:
0.5-0.8 Mpa
Net Weight:
2600KG
Highlight:
Metal Powder Mixing Kneader
,15L Metal Powder Mixing Kneader
,Lab Mixing Kneader
Product Description
15L Lab Metal Powder Mixing Kneader
Custom 15L low-price wearproof metal powder kneader designed for ceramic and metal industry applications.
Product Overview
This mixer features tungsten carbide-coated working surfaces including the chamber, hammer, and blade shaft, providing exceptional durability and contamination-free operation. It is specifically designed for mixing and dispersing metal powders with binders under controlled temperature conditions. Once the mixture reaches paste consistency, it is automatically released after the preset mixing time for subsequent processing. Ideal for small production runs, sample preparation, laboratory work, and educational applications.
Technical Specifications
| Model | CF-1L | CF-2L | CF-3L | CF-5L | CF-10L | CF-15L |
|---|---|---|---|---|---|---|
| Capacity (L) | 1 | 2 | 3 | 5 | 10 | 15 |
| Driving Motor Power (Kw) | 4 | 5.5 | 7.5 | 11 | 18.5 | 22 |
| Tilting Motor Power (Kw) | 0.75 | 0.75 | 0.75 | 0.75 | 1.5 | 1.5 |
| Speed of the Rotor (Front/Rear) (r/m) | 40/31 | 40/31 | 40/31 | 40/31 | 40/31 | 40/31 |
| Air Compression Pressure (MPa) | 0.5-0.8 | 0.5-0.8 | 0.5-0.8 | 0.5-0.8 | 0.5-0.8 | 0.5-0.8 |
| Net Weight (Kg) | 800 | 1000 | 1100 | 1500 | 2500 | 2600 |
Product Advantages
- Advanced powder leak-proof design with easy component replacement and removal
- Enhanced heating and cooling system for faster warming and superior cooling performance
- Utility model patents for ceramic and metal industry applications with ultra-wear-resistant alloy coating on material contact surfaces, significantly extending service life
Operating Principle
The dual rotors within the mixing chamber rotate at specific speed ratios, capturing material from the feeding port and directing it through the roller gap where it undergoes compression and shear forces. After passing through the gap, the material impacts the sharp edge of the "W"-shaped mixing chamber, splitting into two streams that flow along the front and rear chamber walls before returning to the rotor top. Within this sealed environment, materials experience intensive shearing and mixing under controlled pressure and temperature, ensuring complete dispersion and plastification for optimal formula performance.
Mixing System
The "W"-shaped mixing chamber incorporates an "M"-shaped lower pressure cover to create a fully enclosed mixing space. Prismatic spiral stirring blades eliminate dead angles, ensuring thorough material shearing and dispersion to meet physical property requirements. The hollow stirring blades and all material-contact components (mixing chamber, side plate, pressure hammer, stirring blade shaft) are constructed from high-quality high-carbon steel. These components undergo precision tempering, 72-hour deep nitriding heat treatment in vacuum, tungsten carbide surface spraying, and smoothness treatment for exceptional wear resistance, corrosion resistance, non-stick properties, and extended service life.
Technical Advantages
- Changfeng's anti-leakage powder device utilizes mechanical shaft seal tightening technology with self-lubricating seal rings that maintain compression during mixing, reducing system wear and eliminating noise from leakage and poor sealing
- Through-type heating system provides faster, more uniform temperature transfer with 50% greater efficiency than traditional heating plates, with optional PLC program control system available
- Complex tube belt design in mixing chamber ensures excellent heat exchange and precise temperature control, while water-cooled rotors prevent material sticking and ensure even material dispersion
