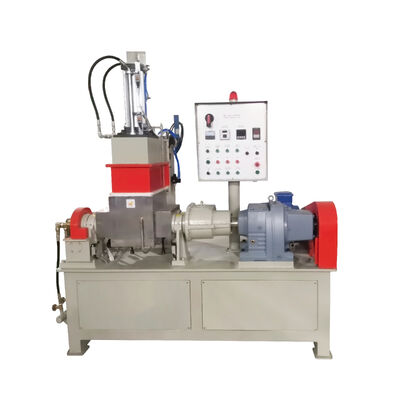

Compact 10L Metal Powder Kneader Equipment For Laboratory
| MOQ: | 1 set |
| Price: | $37400-$42000 |
| Standard Packaging: | Wooden cases |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
Detail Information
Place of Origin
Guangdong,China
Brand Name
CFine
Certification
CE,ISO 9001
Model Number
CF-10L
Capacity:
10L
Driving Motor Power:
18.5KW
Tilting Motor Power:
1.5KW
Speed Of The Protor(Front/Rear):
0-40/31 R/m
Air Compression Pressure:
0.5-0.8 Mpa
Net Weight:
2500KG
Highlight:
Laboratory Metal Powder Kneader
,Compact Metal Powder Kneader
,10L Metal Powder Kneader
Product Description
Custom 10L Laboratory Metal Powder Kneader Equipment
Custom 10L Low Price Wearproof Metal Powder Kneader
Product Overview
This laboratory kneader features tungsten carbide-coated contact surfaces including the chamber, side plate, hammer, and blade shaft, ensuring exceptional wear resistance with zero contamination risk. The system efficiently handles mixing, dispersing, and stirring of metal powders and binder combinations under specific temperature conditions. Once batches achieve a mud-like consistency, they are automatically discharged for subsequent processing. Compact and versatile, this mixer is ideal for small-batch manufacturing, sample trials, laboratory experiments, and classroom instruction.
Technical Specifications
| Model | CF-1L | CF-2L | CF-3L | CF-5L | CF-10L | CF-15L |
|---|---|---|---|---|---|---|
| Capacity (L) | 1 | 2 | 3 | 5 | 10 | 15 |
| Driving Motor Power (KW) | 4 | 5.5 | 7.5 | 11 | 18.5 | 22 |
| Tilting Motor Power (KW) | 0.75 | 0.75 | 0.75 | 0.75 | 1.5 | 1.5 |
| Speed of the Rotor (Front/Rear) (r/min) | 40/31 | 40/31 | 40/31 | 40/31 | 40/31 | 40/31 |
| Air Compression Pressure (MPa) | 0.5-0.8 | 0.5-0.8 | 0.5-0.8 | 0.5-0.8 | 0.5-0.8 | 0.5-0.8 |
| Net Weight (kg) | 800 | 1000 | 1100 | 1500 | 2500 | 2600 |
Product Superiority
- Advanced powder leak-proof design for easy maintenance and component replacement
- Enhanced heating and cooling system with faster warming and superior cooling performance
- Utility model patents for ceramic and metal industry applications with ultra-wear-resistant alloy coating on material contact parts, significantly extending service life
Technical Advantages
- Changfeng's anti-leakage powder device utilizes mechanical shaft seal tightening technology with self-lubricating seal rings that maintain compression during mixing, reducing system wear and eliminating noise from leakage
- Through-type heating system provides faster, more uniform temperature transfer with 50% higher efficiency than traditional heating plates, with optional PLC program control system
- Complex tube belt design in mixing chamber ensures excellent heat exchange and precise temperature control, while water-cooled rotor prevents material sticking and ensures even dispersion
After-Sales Service
Non-consumable parts are guaranteed for one year during normal use. We provide on-site installation guidance and long-term technical support. Electrical components and motors are imported from Taiwan and international brands.
