18 Inch Open Mixing Mill Machine 75kw Mixer Mill For Plastic Materials
| MOQ: | 1 set |
| Price: | $49800-$61600 |
| Standard Packaging: | Wooden cases |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
Detail Information
Place of Origin
Guangdong,China
Brand Name
CFine
Certification
CE,ISO 9001
Model Number
CF-18
Specifications:
18 Inches
Capacity:
About 30-50kg
Roller:
450mm×1200mm
Speed Ratio:
1:1.27
Rotate Speed:
16/18r/min
Main Motor:
75kw
Weight:
11000kg
Size:
L4550mm×W1660mm×H2015mm
Highlight:
18 Inch Open Mixing Mill
,Plastic Open Mixing Mill
,75kw Mixer Mill
Product Description

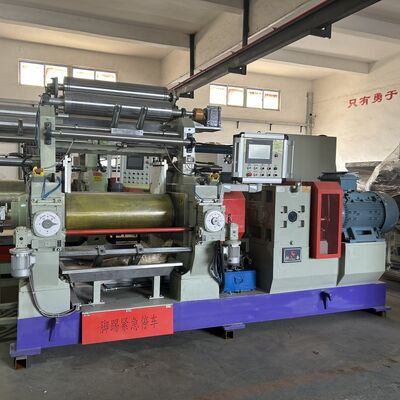

18 Inches Open Mixing Mill Machine
75kw Mixer Mill for Mixing Plastic Materials
Product Overview
CFine Custom 18 Inches Open Mill For Rubber
The open mixing mill is a batch-processing equipment designed for mixing plastic materials. It features two parallel rollers with adjustable spacing that blend and plasticize raw materials into a uniform, molten mixture for calendering processes. Through counter-rotating rollers, the machine applies extrusion and shear forces that knead the rubber, triggering chemical reactions that break down macromolecular chains and ensure thorough component dispersion for optimal rubber compounding.
Technical Specifications
| Specifications | 12" | 14" | 16" | 18" | 22" | 24" | 26" |
|---|---|---|---|---|---|---|---|
| Capacity | 5-20kg/T | 20-25kg/T | 25-35kg/T | 30-50kg/T | 50-60kg/T | 120-130kg/T | 160-170kg/T |
| Roller (mm) | 300*700 | 360*920 | 400*1000 | 450*1200 | 550*1530 | 610*1830 | 660*2130 |
| Speed Ratio | 1:1.27 | 1:1.25 | 1:1.27 | 1:1.27 | 1:1.29 | 1:1.29 | 1:1.29 |
| Roller Spacing (mm) | 0.5-10 | 0.5-10 | 0.5-15 | 0.5-15 | 0.5-15 | 0.5-15 | 0.5-15 |
| Main Motor (kw) | 22 | 37 | 55 | 75 | 110 | 160 | 220 |
| Weight (kg) | 4000 | 5100 | 7500 | 11000 | 17500 | 25000 | 32000 |
| Size (mm) | L2745*W1275*H1657 | L3700*W1425*H1870 | L4000*W1500*H1870 | L4550*W1660*H2015 | L5360*W1946*H2200 | L6100*W2050*H2200 | L6240*W3350*H2670 |
Application Range
Suitable for processing natural rubber, synthetic rubber, silicone, EPDM, fluororubber, EVA, PVC, TPE and other materials for molding, tablet production and related processes.
Product Features
- Bearing Seat: High-quality steel precision casting with CNC processing for superior load-bearing capacity and seismic resistance
- Bearing Lubrication: Forced circulation lubricating oil system reduces manual maintenance requirements
- Base: High-quality steel plate welded construction with integrated structure for excellent seismic resistance
- Roller Pitch Adjustment: Customizable electric or oil pressure adjustment options available
- Rubber Flipping: Optional automatic glue flipping system to reduce manual labor intensity
- Operation: User-friendly design with easy maintenance access
- Safety: Emergency stop buttons installed front and back for immediate shutdown capability
After-Sales Service
Non-consumable parts guaranteed for one year during normal use. We provide on-site installation guidance and long-term technical support.
Note: Electrical components and motors are imported from Taiwan and international brands.
