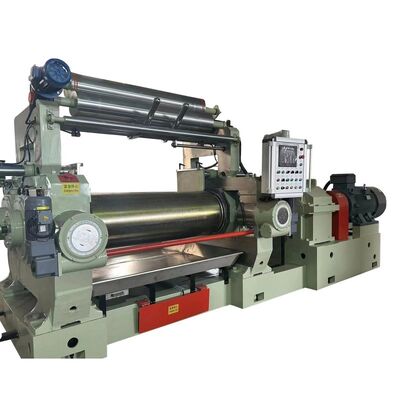

Custom 14 Inch Rubber Mixing Mill Machine Open Intermittent Mixing Device
| MOQ: | 1 set |
| Price: | $27800-$38200 |
| Standard Packaging: | Wooden cases |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
Detail Information
Place of Origin
Guangdong,China
Brand Name
CFine
Certification
CE,ISO 9001
Model Number
CF-14
Specifications:
14 Inches
Capacity:
About 20-25kg
Roller:
360mm×920mm
Speed Ratio:
1:1.25
Rotate Speed:
18.65r/min
Main Motor:
37kw
Weight:
5100kg
Size:
L3000mm×W1280mm×H1550mm
Highlight:
14 Inch Rubber Mixing Mill Machine
,Custom Rubber Mixing Mill Machine
,Open Intermittent Mixing Device
Product Description
Custom 14 Inches Open Type Rubber Mixing Mill
This open intermittent mixing device is designed for plastic materials processing, featuring two parallel rollers with adjustable gap spacing. The mill efficiently mixes and plasticizes uniformly blended raw materials, delivering properly mixed and plasticized molten materials to calenders.
Working Principle
During rubber mixing operations, the mill utilizes the extrusion and shearing effects generated by two counter-rotating rollers. Through repeated kneading and mixing cycles accompanied by chemical reactions, the equipment breaks internal macromolecular chains within rubber and plastic compounds. This process ensures homogeneous dispersion of all components, achieving optimal mixing results.
Technical Specifications
| Specifications | 12" | 14" | 16" | 18" | 22" | 24" | 26" |
|---|---|---|---|---|---|---|---|
| Capacity | 5-20kg/T | 20-25kg/T | 25-35kg/T | 30-50kg/T | 50-60kg/T | 120-130kg/T | 160-170kg/T |
| Roller | 300*700mm | 360*920mm | 400*1000mm | 450*1200mm | 550*1530mm | 610*1830mm | 660*2130mm |
| Speed Ratio | 1:1.27 | 1:1.25 | 1:1.27 | 1:1.27 | 1:1.29 | 1:1.29 | 1:1.29 |
| Roller Spacing | 0.5-10mm | 0.5-10mm | 0.5-15mm | 0.5-15mm | 0.5-15mm | 0.5-15mm | 0.5-15mm |
| Main Motor | 22kw | 37kw | 55kw | 75kw | 110kw | 160kw | 220kw |
| Weight | 4000kg | 5100kg | 7500kg | 11000kg | 17500kg | 25000kg | 32000kg |
| Size(mm) | L2745*W1275*H1657 | L3700*W1425*H1870 | L4000*W1500*H1870 | L4550*W1660*H2015 | L5360*W1946*H2200 | L6100*W2050*H2200 | L6240*W3350*H2670 |
Application Range
Suitable for processing natural rubber, synthetic rubber, silicone, EPDM, fluororubber, EVA, PVC, TPE and other materials for molding, tablet production and various manufacturing processes.
Product Features
- Bearing Seat: Manufactured from high-quality steel precision casting with high-precision CNC machining for superior load-bearing capacity and excellent seismic resistance
- Bearing Lubrication: Forced circulation lubricating oil system minimizes manual maintenance requirements
- Base Construction: High-quality steel plate welded integrated structure provides exceptional seismic resistance
- Roller Pitch Adjustment: Customizable electric or oil pressure adjustment systems available to meet specific customer requirements
- Rubber Flipping: Optional automatic glue flipping system reduces manual labor intensity
- Operation: User-friendly design ensures easy operation and straightforward maintenance
- Safety: Emergency stop buttons installed at front and rear positions for immediate shutdown capability
After-Sales Service
One-year warranty on non-consumable parts during normal operation. We provide on-site installation guidance and long-term technical support to ensure optimal performance.
Note: Electrical components and motors are sourced from premium Taiwan and international brands for reliable performance.
